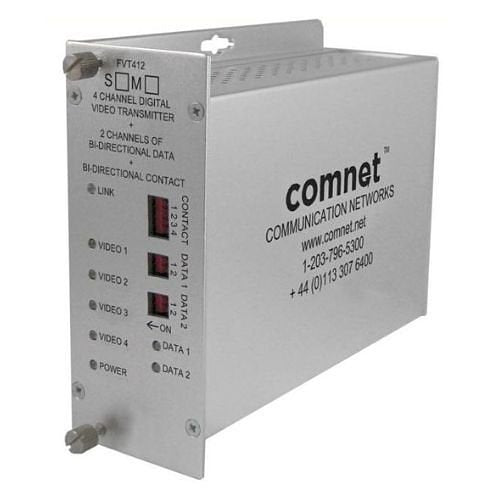

Comnet FVT412M1 encoded video transmitter, Freestanding, Rack Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet FVT412M1 is an encoded video transmitter.
The Comnet FVT/FVR412(M)(S)1 Series transmits four channels of video utilizing state of the art digital encoding and decoding for high-quality video transmission, along with two channels of bi-directional data and one bi-directional contact closure over one single mode or multimode optical fiber. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are required.
Key features
- One bi-directional contact closure
- Standard ComFit models are hot-swappable
- Supports RS232, RS422, and 2- or 4-wire RS485
- Compatible with NTSC, PAL, or SECAM Video Standards
- Status indicating LEDs provide rapid indication of critical operating parameters
- Robust design ensures extremely high reliability in unconditioned out-of-plant environments
- 10-Bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard
- ComFit standard form factor is designed for wall, surface, rack, or DIN rail mount installations (using optional card cage or DIN mounting bracket)
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Tested and certified by an independent laboratory for full compliance with the environmental requirements of NEMA TS-1/ TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
If you are matching this to an existing installation, work from the FVT412M1 part number rather than the description.
Specifications
Technical information
Interfaces/ports
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | FVT412M1 |
| Product Type | Video Extender Transmitter |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Maximum Operating Distance | 1m |
| Media Type Supported | Optical Fiber |
Interfaces/ports
| Number of ST Ports | 1 |
|---|
Power description
| Frequency | 50Hz |
|---|
Product information
| Mount Type | Freestanding, Rack Mount |
|---|
Miscellaneous
| Additional Information | 4 Channel digitally encoded video transmitter 2 Bi-directional data channels |
|---|---|
| Environmental status | Yes |
Attributes
| Package Contents | FVT412M1; DC Plug-in Power Supply |
|---|---|
| Additional Information | 4 Channel digitally encoded video transmitter 2 Bi-directional data channels |
Comnet FVT412M1 encoded video transmitter, Freestanding, Rack Mount
