About this product

Please note: this is a non-returnable item (excluding faulty goods)

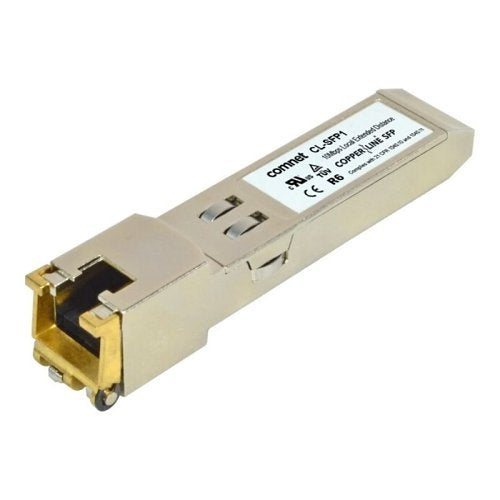

Comnet CL-SFP1 is an extended distance SFP from the CL range.

The Comnet CopperLine CL-SFP is a small form-factor pluggable Ethernet extender module that improves bandwidth and distance of existing copper networks. It helps avoid installation costs of new fiber lines on site by allowing full 10Mbps or 100Mbps Ethernet bandwidth to be extended over 2-wire twisted pair or coaxial cable. Housed in a small form-factor pluggable (SFP) module enclosure, it is designed for plug-and-play installation into any 100BASE-FX Ethernet unit with an MSA-compliant port.

These must be used in pairs, with a CL-SFP module installed at both ends of the connection, or a CopperLine unit installed at one end.

Key features

  • Extends Ethernet up to 914m at 10 Mbps or 305m at 100 Mbps over 1 pair UTP cable
  • Extends Ethernet up to 1,524m at 10 Mbps or 610m at 100 Mbps over Coaxial cable using the optional CLRJ2COAX or CLRJ2COAXCAB adapters
  • Automatic local/remote device selection ensures ultimate flexibility and ease of use
  • Small Form-Factor Pluggable (SFP) module can be plugged into any Ethernet switch with SFP ports that support 100BASE-FX (the modules cannot be used in ports that only support 1000BASE-FX SFP modules)
  • Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/ TS-2 and the Caltrans Specification for Traffic Signal Control Equipment

If you are matching this to an existing installation, work from the CL-SFP1 part number rather than the description.

£ 267 03
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£267.03 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
CL-SFP1
Product Series
CL
Product Type
SFP
General information
Application/Usage
Data Networking
Technical information
Fibre Optic Mode
Multimode, Single-mode
Maximum Distance
305.00m
Media Type Supported
Optical Fiber, Twisted Pair
Certifications
RoHS compliance
Out of Scope
WEEE Compliant
Compliant
I/o expansions
Expansion Slot Type
SFP
Interfaces/ports
Connector Type
RJ-45
Interfaces/Ports Details
1 x RJ-45 10Base-T LAN
Number of Ports
1
Media & performance
Network Technology
10Base-T
Network & communication
Ethernet Technology
10 Mbps (Ethernet)
Physical characteristics
Depth
73.90mm
Form Factor
Small
Height
12.20mm
Weight
30.10g
Width
14.00mm
Miscellaneous
Compatibility
MSA Complaint
Attributes
Compatibility
MSA Complaint
Weight
30.10g

Specifications

Brand Name Comnet
Manufacturer Part Number CL-SFP1
Product Series CL
Product Type SFP

General information

Application/Usage Data Networking

Technical information

Fibre Optic Mode Multimode, Single-mode
Maximum Distance 305.00m
Media Type Supported Optical Fiber, Twisted Pair

Certifications

RoHS compliance Out of Scope
WEEE Compliant Compliant

I/o expansions

Expansion Slot Type SFP

Interfaces/ports

Connector Type RJ-45
Interfaces/Ports Details 1 x RJ-45 10Base-T LAN
Number of Ports 1

Media & performance

Network Technology 10Base-T

Network & communication

Ethernet Technology 10 Mbps (Ethernet)

Physical characteristics

Depth 73.90mm
Form Factor Small
Height 12.20mm
Weight 30.10g
Width 14.00mm

Miscellaneous

Compatibility MSA Complaint

Attributes

Compatibility MSA Complaint
Weight 30.10g

Comnet CL-SFP1 extended distance SFP

Comnet CL-SFP1 extended distance SFP, Small

Who this is for

For the installer — this is the extended distance SFP supplied under Comnet part number CL-SFP1. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an extended distance SFP made by Comnet. The part number CL-SFP1 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this extended distance SFP is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact extended distance SFP I have been quoted? Check the manufacturer part number CL-SFP1 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against CL-SFP1 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
