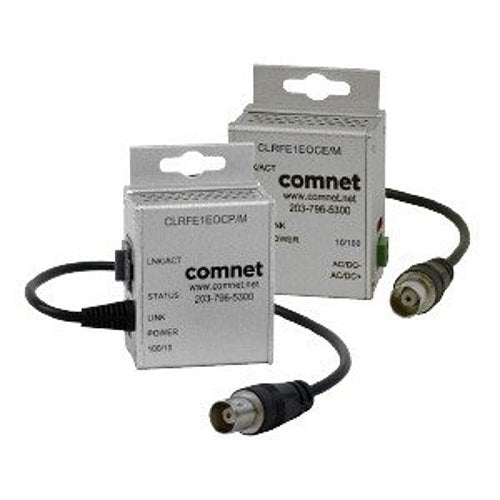

Comnet CLRFE1EOCP/M network extender, DIN Rail Mount

Free Delivery
£ 288 65
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Comnet CLRFE1EOCP/M is a network extender from the CLRFE1EOC(E,P)/M range.

The Comnet CopperLine® Ethernet-over-copper minis are an ultra-small form factor addition to the Comnet CopperLine product family. These miniature remote units provide 10/100 Mbps Ethernet data with or without Pass-through PoE power over extended distance coaxial cable or UTP. Available in both standard and PoE applications, the mini CopperLine units will allow extended distance over copper to be used in applications where space is extremely limited.

Automatically configured as remote units, and with user configurable selection of 10 Mbps or 100 Mbps speed these units are simple to install.

Key features

  • Extends Ethernet up to 3,000' (914 m) at 10 Mbps or 2,000' (610 m) at 100 Mbps over UTP cable
  • Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
  • Full 10/100 Mbps Bandwidth
  • Supports Multicast, Unicast and Jumbo Frame
  • Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
  • Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
  • Designed and manufactured in the USA
  • Transmits individual Ethernet data with or without Passthrough PoE over UTP or Coaxial cable
  • Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
  • Extended temperature operation from -40°C to +75°C

If you are matching this to an existing installation, work from the CLRFE1EOCP/M part number rather than the description.

£ 288 65
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£288.65 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
CLRFE1EOCP/M
Product Series
CLRFE1EOC(E,P)/M
Product Type
Network Extender
General information
Maximum Transfer Distance
1524m
Technical information
Maximum Data Transfer Rate
12.5Mbps
Environmental conditions
Operating Relative Humidity (H-H)
90%
Operating Temperature (T-T)
-40-65°C
Storage Temperature (T-T)
-40-80°C
Interfaces/ports
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Media & performance
Data Transfer Rate
100Mbps
Network Technology
100Base-TX, 10Base-T
Network & communication
Ethernet Technology
10 Mbps (Ethernet)
Networking Standards
IEEE 802.3af, IEEE 802.3at
Physical characteristics
Height
28.00mm
Width
41.00mm
Power description
Input Voltage
12V DC
Plug/Connector Type
BNC
Power over Ethernet (PoE)
Yes
Power Source
AC Power, DC Power
Product information
Length
58.40mm
Mount Type
DIN Rail Mount
Attributes
Environmental status
Yes
Input Voltage
12V DC
Power Source
AC Power, DC Power
Operating Relative Humidity (H-H)
90%

Specifications

Brand Name Comnet
Manufacturer Part Number CLRFE1EOCP/M
Product Series CLRFE1EOC(E,P)/M
Product Type Network Extender

General information

Maximum Transfer Distance 1524m

Technical information

Maximum Data Transfer Rate 12.5Mbps

Environmental conditions

Operating Relative Humidity (H-H) 90%
Operating Temperature (T-T) -40-65°C
Storage Temperature (T-T) -40-80°C

Interfaces/ports

Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1

Media & performance

Data Transfer Rate 100Mbps
Network Technology 100Base-TX, 10Base-T

Network & communication

Ethernet Technology 10 Mbps (Ethernet)
Networking Standards IEEE 802.3af, IEEE 802.3at

Physical characteristics

Height 28.00mm
Width 41.00mm

Power description

Input Voltage 12V DC
Plug/Connector Type BNC
Power over Ethernet (PoE) Yes
Power Source AC Power, DC Power

Product information

Length 58.40mm
Mount Type DIN Rail Mount

Attributes

Environmental status Yes
Input Voltage 12V DC
Power Source AC Power, DC Power
Operating Relative Humidity (H-H) 90%

Comnet CLRFE1EOCP/M network extender

Comnet CLRFE1EOCP/M network extender, DIN Rail Mount

Who this is for

For the installer — this is the network extender supplied under Comnet part number CLRFE1EOCP/M. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a network extender made by Comnet. The part number CLRFE1EOCP/M is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this network extender is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact network extender I have been quoted? Check the manufacturer part number CLRFE1EOCP/M against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against CLRFE1EOCP/M answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Comnet CLRFE1EOCP/M network extender
Comnet

Comnet CLRFE1EOCP/M network extender, DIN Rail Mount

£288.65

Please note: this is a non-returnable item (excluding faulty goods)

Comnet CLRFE1EOCP/M is a network extender from the CLRFE1EOC(E,P)/M range.

The Comnet CopperLine® Ethernet-over-copper minis are an ultra-small form factor addition to the Comnet CopperLine product family. These miniature remote units provide 10/100 Mbps Ethernet data with or without Pass-through PoE power over extended distance coaxial cable or UTP. Available in both standard and PoE applications, the mini CopperLine units will allow extended distance over copper to be used in applications where space is extremely limited.

Automatically configured as remote units, and with user configurable selection of 10 Mbps or 100 Mbps speed these units are simple to install.

Key features

If you are matching this to an existing installation, work from the CLRFE1EOCP/M part number rather than the description.
