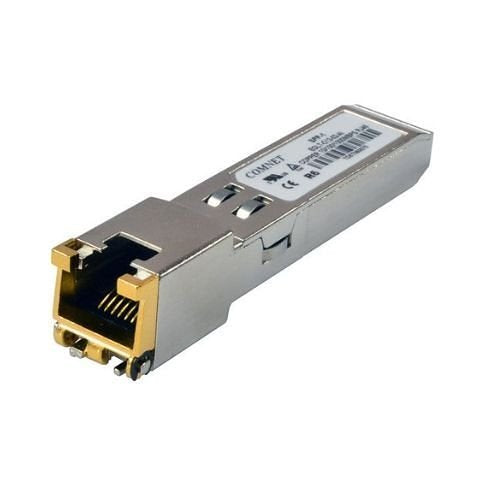

Comnet SFP-12B optical fiber transceiver, Small
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet SFP-12B is an optical fiber transceiver.
The Comnet selection of MSA Compliant Small Form-Factor Pluggable (SFP) modules allows for an optical or electrical interface when using a Comnet managed switch, unmanaged switch or media converter. These interchangeable SFP modules are available for use with copper media, multimode optical fiber, or single mode optical fiber. The optical fiber SFP modules are available in Fast Ethernet one and two fiber versions and Gigabit Ethernet one and two fiber versions.
They also are available with LC or SC optical connectors. The Comnet SFP modules offer different wavelengths and optical power budget to allow distances from 300 meters to 120 kilometers. These SFP modules are industrially rated to perform in the most difficult operating environments.
Key features
- ›IEEE 802.3 compliant
- No in-field adjustments required
- Interchangeable SFP for fiber type, distance and connector
- Conforms to (SFP) Small Form-Factor Pluggable Multi-Source Agreement (MSA)
- › Operating temperature -40˚ C to +75˚ C
- Storage temperature -40˚ C to +85˚ C
If you are matching this to an existing installation, work from the SFP-12B part number rather than the description.
-
Download
- SFP-12B — User Manual
Specifications
General information
Technical information
I/o expansions
Interfaces/ports
Network & communication
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | SFP-12B |
| Product Type | SFP (mini-GBIC) |
General information
| Application/Usage | Data Networking, Optical Network |
|---|
Technical information
| Fibre Optic Mode | Single-mode |
|---|---|
| Media Type Supported | Optical Fiber |
I/o expansions
| Expansion Slot Type | SFP |
|---|
Interfaces/ports
| Connector Type | LC |
|---|---|
| Interfaces/Ports Details | 1 x LC 1000Base-FX Network |
| Number of Ports | 1 |
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
|---|
Physical characteristics
| Form Factor | Small |
|---|
Power description
| Plug/Connector Type | LC |
|---|
Miscellaneous
| Compatibility | CNGE12MS, CNGE22MC, CNGE24MS, CNGE28FX4TX24MSPOE, CNGE2FE16MS, CNGE2FE24MS, CNGE2FE24MSPOE, CNGE2FE4SMS[POE], CNGE2FE8MSPOE, CNGE2FE8MSPOE+, CNGE2FE8MSPOE2, CNGE2MC, CNGE2MC-M, CNGE2MCPOEM, CNGE3FE7MS2, CNGE3FE7MS3, CNGE3FE7MS4, CNGE4US, CNGE5MS, CNGE8FX4TX4MS, CNGE8MS, CNGE8US, CNMC2SFP, CNMCSFP, CNMCSFP/M, CNMCSFPPOE/M, CWGE24MODMS, CWGE26FX2TX24MSPOE, CWGE28FX4TX24MS, CWGE2FE24MODMS/CHASSIS, CWGE2FE8MSPOE, CWGE9MS, FVT/FVR10D2I1C4E, FVT/FVR20D2I1C4E, FVT/FVR40D2I1C4E, FVT/FVR40D2SFP, FVT/FVR40D4SFP, FVT/FVR40SFP, FVT/FVR80D2SFP, FVT/FVR80D4SFP, FVT/FVR80D8SFP, FVT/FVR80SFP, FVT/FVR8SFP2R, FVT/FVR8SFP2RD8, MSA Compliant Comnet Products: |
|---|---|
| Environmental status | Yes |
Attributes
| Compatibility | CNGE12MS, CNGE22MC, CNGE24MS, CNGE28FX4TX24MSPOE, CNGE2FE16MS, CNGE2FE24MS, CNGE2FE24MSPOE, CNGE2FE4SMS[POE], CNGE2FE8MSPOE, CNGE2FE8MSPOE+, CNGE2FE8MSPOE2, CNGE2MC, CNGE2MC-M, CNGE2MCPOEM, CNGE3FE7MS2, CNGE3FE7MS3, CNGE3FE7MS4, CNGE4US, CNGE5MS, CNGE8FX4TX4MS, CNGE8MS, CNGE8US, CNMC2SFP, CNMCSFP, CNMCSFP/M, CNMCSFPPOE/M, CWGE24MODMS, CWGE26FX2TX24MSPOE, CWGE28FX4TX24MS, CWGE2FE24MODMS/CHASSIS, CWGE2FE8MSPOE, CWGE9MS, FVT/FVR10D2I1C4E, FVT/FVR20D2I1C4E, FVT/FVR40D2I1C4E, FVT/FVR40D2SFP, FVT/FVR40D4SFP, FVT/FVR40SFP, FVT/FVR80D2SFP, FVT/FVR80D4SFP, FVT/FVR80D8SFP, FVT/FVR80SFP, FVT/FVR8SFP2R, FVT/FVR8SFP2RD8, MSA Compliant Comnet Products: |
|---|
