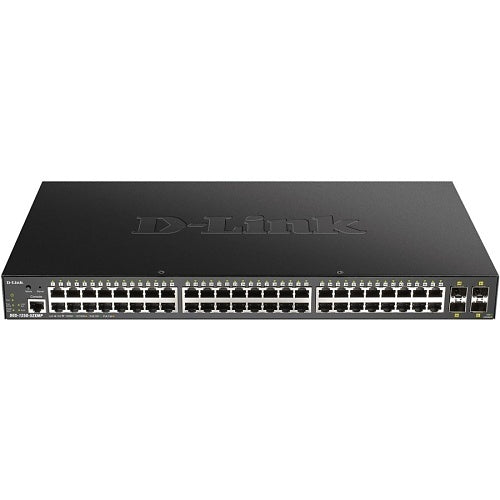

D-Link DGS-1250-52XMP smart managed switch
About this product
Please note: this is a non-returnable item (excluding faulty goods)
D-Link DGS-1250-52XMP is a smart managed switch from the DGS-1250 range.
Power & Value
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features. The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers - enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime. Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied. Extensive Management and Advanced Features
The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.
Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
Key features
- Gigabit Smart Managed Switch with 10G Uplinks
- Supports 24 or 48 x 10/100/1000BASE-T ports
- Includes 4 x 10G SFP+ ports for optical connections
- 370W power budget for PoE devices
- Dual Image and Dual Configuration for easy maintenance
- Supports Auto Voice VLAN and Surveillance Mode
- Advanced Layer-2 with Lite Layer-3 features
- Full Command Line Interface (CLI) functionality
- Spanning Tree Protocols (STP/RSTP/MSTP) for network stability
- D-Link Network Assistant (DNA) utility for remote management
If you are matching this to an existing installation, work from the DGS-1250-52XMP part number rather than the description.
Specifications
Technical information
I/o expansions
Interfaces/ports
Management & protocols
Media & performance
Network & communication
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | D-Link |
|---|---|
| Manufacturer Part Number | DGS-1250-52XMP |
| Product Series | DGS-1250 |
| Product Type | Ethernet Switch |
Technical information
| Media Type Supported | Optical Fiber, Twisted Pair |
|---|---|
| Power Consumption | 28.4000W |
I/o expansions
| Expansion Slot Type | SFP+ |
|---|---|
| Number of SFP Slots | 4 |
| Number of Total Expansion Slots | 4 |
Interfaces/ports
| Modular | Yes |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 52 |
| Uplink Port | Yes |
Management & protocols
| Manageable | Yes |
|---|
Media & performance
| Network Technology | 1000Base-T |
|---|
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet), 10 Mbps (Ethernet) |
|---|---|
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Physical characteristics
| Depth | 430.00mm |
|---|---|
| Height | 44.00mm |
| Width | 440.00mm |
Power description
| Frequency | 50Hz |
|---|---|
| Input Voltage | 100-240V AC |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370W |
| Power Source | AC Power |
Miscellaneous
| Environmental certification | CE, UL |
|---|---|
| Environmental status | Yes |
| Features | 11 Web Languages for management flexiblity, 370W PoE Power Budget (802.3af/at) to allow more power for connected devices, 4 x 10G SFP+ ports for choosing the most suitable media type for your requirement, 48 x 10/100/1000BASE-T PoE ports, Advanced security features such as Access Control List, IMPB, 802.1X Authentication to enhance network security and protect the internet IT network, Dual Image and Configuration for reduced downtime, Full CLI for for easy management, Lite L3 Static Routing for increased network efficiency, QoS Enablement for performance improvement of critical network traffic, Supports STP/RSTP/MSTP to maintain the quality of network |
Attributes
| Input Voltage | 100-240V AC |
|---|---|
| Power Source | AC Power |
| Number of SFP Slots | 4 |
