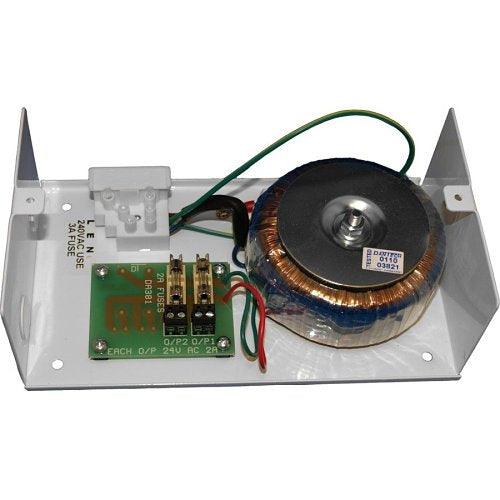

Dantech Electronic Engineering DA381 power supply, Enclosure
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dantech Electronic Engineering DA381 is a power supply.
This simple range of multi-purpose power supplies provides up to 4A of 24V AC via two 2A fused outputs. The DA381 is available with 110V or 230V AC input within a mild steel enclosure, IP66 Rated enclosure or plate-mounted. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts.
Typical uses include powering door access controllers, electronic door releases, magnetic locks and CCTV cameras. Includes a 'spares-bag' mounting kit
Each unit includes a spares-bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws.
Key features
- Two 2A 24V AC fused outputs
- Mild steel powder-coated enclosures
- Includes a spares-bag mounting kit
- Input 230V AC @ 50Hz (+/- 10%)
If you are matching this to an existing installation, work from the DA381 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Dantech Electronic Engineering |
|---|---|
| Manufacturer Part Number | DA381 |
| Product Type | Power Supply |
Technical information
| Amperage | 2.00A |
|---|---|
| Output Voltage | 24V AC |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Out of Scope |
Physical characteristics
| Depth | 70.00mm |
|---|---|
| Form Factor | Enclosure |
| Height | 200.00mm |
| Width | 120.00mm |
Power description
| Input Voltage | 230V AC |
|---|---|
| Output Current | 2.0000A |
Miscellaneous
| Compatibility | Powering Door Access Controller Electronic Door Release Magnetic Lock CCTV Camera |
|---|
Attributes
| Amperage | 2.00A |
|---|---|
| Compatibility | Powering Door Access Controller; Electronic Door Release; Magnetic Lock; CCTV Camera |
| Input Voltage | 230V AC |
| Output Current | 2.0000A |
| Output Voltage | 24V AC |
| Package Contents | Power Supply; 'Spares-Bag' Mounting Kit |
Dantech Electronic Engineering DA381 power supply, Enclosure
