Dantech Electronic Engineering DA449/4OP power supply
About this product
Please note: this is a non-returnable item (excluding faulty goods)

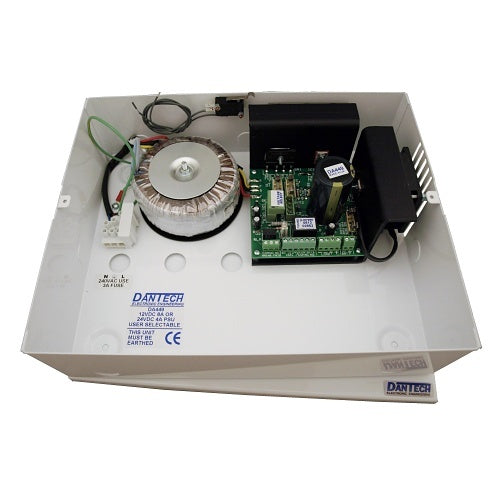

Dantech Electronic Engineering DA449/4OP is a power supply.
The DA449 power supply provides either a 12VDC (13.7) or a 24VDC (27.4) output. The output voltage can be changed from 12V to 24V by using a simple selector plug. These units provide two separate output terminal pairs and can house and charge two 12V 7Ah VRLA batteries.
Typical uses are for powering door access controllers, electric releases and magnetic-locks.
Key features
- Selectable 12V or 24VDC output
- Integrated UPS battery back-up function
- Mains fail signalling
- Multi-purpose independent relay
- Includes a spares-bag mounting kit
If you are matching this to an existing installation, work from the DA449/4OP part number rather than the description.
Specifications
Technical information
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Dantech Electronic Engineering |
|---|---|
| Manufacturer Part Number | DA449/4OP |
Technical information
| Output Voltage | 12V DC |
|---|
Physical characteristics
| Depth | 320.00mm |
|---|---|
| Height | 255.00mm |
| Width | 320.00mm |
Power description
| Input Voltage | 230V AC |
|---|---|
| Output Current | 8.0000A |
Miscellaneous
| Environmental certification | CE |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 230V AC |
| Output Current | 8.0000A |
| Output Voltage | 12V DC |
