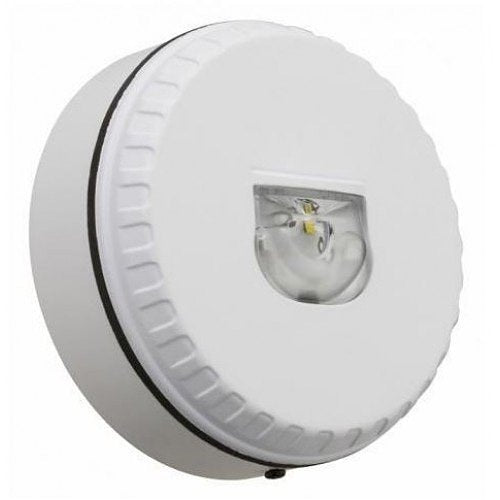

Eaton 812015FULL-0116X security strobe light, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Eaton 812015FULL-0116X is a security strobe light from the Solista range.
Eaton 812015FULL-0116X Alarms & signalling devices, Fulleon, Solista LX Wall LED beacon, Red flash, White housing, Shallow white (W1) base (I SOL-LX-W/RF/W1/S)The Solista LX Wall product takes its slim line design cues from the popular Solista Maxi. Available in a red or white body colour and with a shallow, deep base or U base, the Solista LX Wall is suitable for a variety of applications. The Solista LX Wall has a unique lens design that distributes light to achieve the required illumination, whist using minimum current.
Certified to EN 54-23 (meets the required illumination 0.4lux/m2 over entire area) , see the resources tab for product certificates.
Key features
- Ultra-low current consumption of 10mA
- Up to 7.5m room coverage
- 0.5Hz or 1Hz flash rate
- Coverage switch to 2.5m
- Use where current consumption is a key consideration
- Ideal for bedrooms, bathrooms and toilets
- Switch flash rate to 0.5Hz to reduce current consumption
- Reduces power consumption by up to 50%
If you are matching this to an existing installation, work from the 812015FULL-0116X part number rather than the description.
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Product information
Attributes
Specifications
| Brand Name | Eaton |
|---|---|
| Manufacturer Part Number | 812015FULL-0116X |
| Product Series | Solista |
| Product Type | Security Strobe Light |
General information
| Application/Usage | Fire Alarm, Signaling |
|---|
Technical information
| Alarm Type | Visual |
|---|---|
| Light Colour | Red |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 37.00mm |
| Height | 93.00mm |
| Lens Colour | Clear |
| Weight | 100.00g |
| Width | 93.00mm |
Power description
| Input Voltage | 60V DC |
|---|
Product information
| Bulb/Tube Type | LED Bulb |
|---|---|
| Mount Type | Surface Mount |
Attributes
| Input Voltage | 60V DC |
|---|---|
| Weight | 100.00g |
Eaton 812015FULL-0116X security strobe light, White
