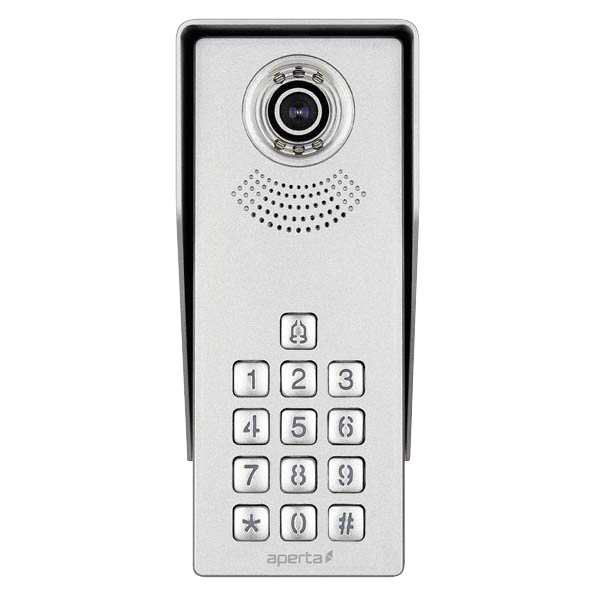

ESP APDSSWKP Single Way Video Door Station with Keypad
Free Delivery
£
151
61
(Incl. VAT)
Single Way Video Door Station with Keypad
About this product
About this product
The ESP APDSSWKP is a Single Way Video Door Station with Keypad.
Key Features
- Waterproof IP55 metal outdoor station
- High resolution colour Camera
- Built in keypad for door code unlocking
- Simple 2 core cable installation
- Genuine ESP station with keypad supplied by WME
-
Download
- APDSSWKP Tech Sheet
£
151
61
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
200 x 87 x 53
Operating Voltage (V DC)
24 (BUS)
Materials
Aluminium Alloy
Weight (Kg)
.64
Lock outputs
2
Illumination
5 White light LEDs
Communication Protocol
BUS
Resolution
700TVL
Sensitivity (Lux)
0.1
Sensor Size (")
1/3
Lens size (mm)
3.6
User Interaction
0 - 9, *, #, and Bell
Code Lengths
2 - 6
PIN Length
4 or 6
Maximum Access Codes
10 PINs
Operating Temperature (°C)
-20 to +40
Supplied
Fixing Screws, and Wall Plugs, User Manual
answered, calls last up to 30 seconds
APPOWSWDR: Din Mounted BUS power supply
Additional Information
Simple 2-core Installation
Dimensions
Dimensions (mm)
200 x 87 x 53
Specifications
| Dimensions (mm) | 200 x 87 x 53 |
|---|---|
| Operating Voltage (V DC) | 24 (BUS) |
| Materials | Aluminium Alloy |
| Weight (Kg) | .64 |
| Lock outputs | 2 |
| Illumination | 5 White light LEDs |
| Communication Protocol | BUS |
| Resolution | 700TVL |
| Sensitivity (Lux) | 0.1 |
| Sensor Size (") | 1/3 |
| Lens size (mm) | 3.6 |
| User Interaction | 0 - 9, *, #, and Bell |
| Code Lengths | 2 - 6 |
| PIN Length | 4 or 6 |
| Maximum Access Codes | 10 PINs |
| Operating Temperature (°C) | -20 to +40 |
| Supplied | Fixing Screws, and Wall Plugs, User Manual |
| answered, calls last up to 30 seconds | APPOWSWDR: Din Mounted BUS power supply |
| Additional Information | Simple 2-core Installation |
Dimensions
| Dimensions (mm) | 200 x 87 x 53 |
|---|
Single Way Video Door Station with Keypad features
ESP APDSSWKP Single Way Video Door Station with Keypad
