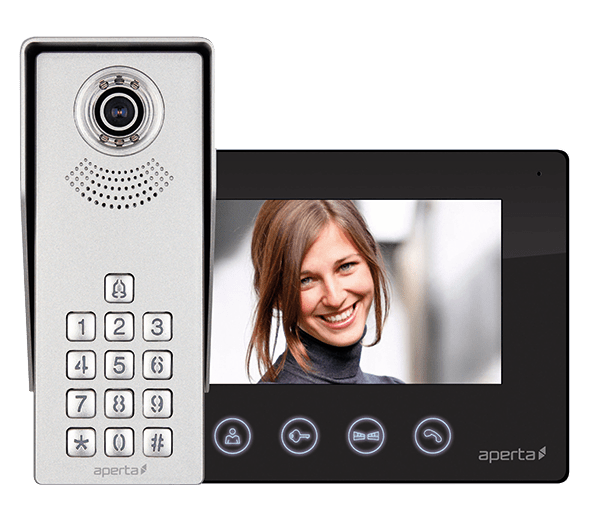

ESP APKITKPBLK Colour Video Door Entry Keypad System, Black
Free Delivery
£
283
75
(Incl. VAT)
2 Years Warranty
Colour Video Door Entry Keypad System, Black
About this product
About this product
The ESP APKITKPBLK is a Colour Video Door Entry Keypad System, Black. Featuring a black finish, it is built for dependable professional installation.
Key Features
- Simple 2 core cable installation
- Single power supply (included) supports monitors & outdoor stations, flexible combination of up to 5 devices
- Outdoor station with built in keypad for code door unlocking
- Clear high resolution colour picture on 7" hands free TFT monitor
- A black finish
-
Download
- APKITKPBLK Tech Sheet
£
283
75
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
90 x 60 x 105
Materials
ABS
Colour
Black
Mounting
Surface or DIN Rail
Weight (Kg)
0.45
Operating Voltage (V DC)
24 (BUS)
Effective Distance to Power Supply (m)
100
Effective Distance to PowerSupply (m)
50
Master/Slave
Yes (set by 6th DIP Switch)
Global Selections
Normally Open or Normally
Zone End Of Line
Yes (set by 7th DIP Switch)
Lock outputs
2
Illumination
Backlight Screen and Buttons
Resolution
700 TVL
Adjustments
Volume, Brightness, and Contrast
Sensor Size (")
1/3
User Interaction
0 - 9, *, #, and Bell
Lens size (mm)
3.6
Type
7 x DIP switches
Sensitivity (Lux)
0.1
Maximum Settable Address
32 (set by first 5 DIP Switches)
Communication Protocol
BUS
Code Lengths
2 - 6
Maximum Access Codes
10
Recommended BUS Cable
Cat5e or higher
Operating Temperature (°C)
-20 to +40
Component 3
Quantity
Supply Voltage (V AC)
100 - 230
BUS Output
24V DC @ 800mA
Effective Distance to Doorstation (m)
50
Effective Distance to Monitor (m)
100
Warranty Years
2
Additional Information
Simple 2-core Installation
Dimensions
Dimensions (mm)
90 x 60 x 105
Specifications
| Dimensions (mm) | 90 x 60 x 105 |
|---|---|
| Materials | ABS |
| Colour | Black |
| Mounting | Surface or DIN Rail |
| Weight (Kg) | 0.45 |
| Operating Voltage (V DC) | 24 (BUS) |
| Effective Distance to Power Supply (m) | 100 |
| Effective Distance to PowerSupply (m) | 50 |
| Master/Slave | Yes (set by 6th DIP Switch) |
| Global Selections | Normally Open or Normally |
| Zone End Of Line | Yes (set by 7th DIP Switch) |
| Lock outputs | 2 |
| Illumination | Backlight Screen and Buttons |
| Resolution | 700 TVL |
| Adjustments | Volume, Brightness, and Contrast |
| Sensor Size (") | 1/3 |
| User Interaction | 0 - 9, *, #, and Bell |
| Lens size (mm) | 3.6 |
| Type | 7 x DIP switches |
| Sensitivity (Lux) | 0.1 |
| Maximum Settable Address | 32 (set by first 5 DIP Switches) |
| Communication Protocol | BUS |
| Code Lengths | 2 - 6 |
| Maximum Access Codes | 10 |
| Recommended BUS Cable | Cat5e or higher |
| Operating Temperature (°C) | -20 to +40 |
| Component 3 | Quantity |
| Supply Voltage (V AC) | 100 - 230 |
| BUS Output | 24V DC @ 800mA |
| Effective Distance to Doorstation (m) | 50 |
| Effective Distance to Monitor (m) | 100 |
| Warranty Years | 2 |
| Additional Information | Simple 2-core Installation |
Dimensions
| Dimensions (mm) | 90 x 60 x 105 |
|---|
Colour Video Door Entry Keypad System, Black features
