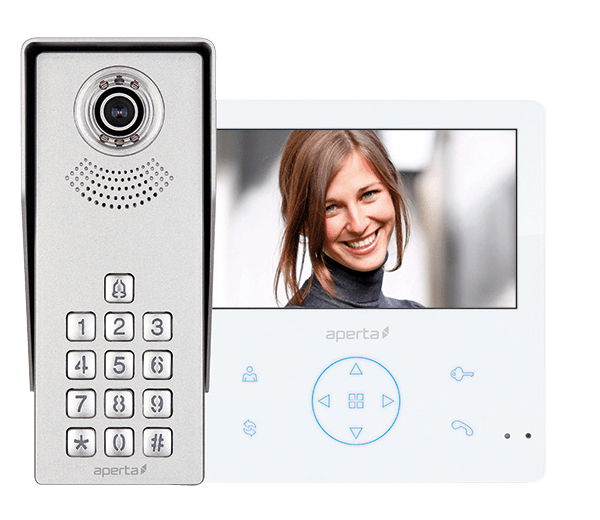

ESP APKITKPG Colour Video Door Entry Keypad System with Record Facility, White
Free Delivery
£
336
12
(Incl. VAT)
2 Years Warranty
Colour Video Door Entry Keypad System with Record Facility, White
About this product
About this product
The ESP APKITKPG is a Colour Video Door Entry Keypad System with Record Facility, White. Featuring a white finish, it is built for dependable professional installation.
Key Features
- Simple 2 core cable installation
- Single power supply (included) supports monitors & outdoor stations, flexible combination of up to 5 devices
- Clear high resolution colour picture on 7" hands free TFT monitor
- Optional still or video recording and playback of callers
- A white finish
-
Download
- APKITKPG Tech Sheet
£
336
12
FAST delivery by Order within
Price
Technical Details
Specifications
Materials
ABS
Dimensions (mm)
90 x 60 x 105
Mounting
Surface or DIN Rail
Colour
White
Weight (Kg)
0.55
Operating Voltage (V DC)
24 (BUS)
Effective Distance to PowerSupply (m)
50
Effective Distance to Power Supply (m)
100
Global Selections
Normally Open or Normally
Master/Slave
Yes (set by menus)
Lock outputs
2
Resolution
700 TVL
Number of Speakers
2
Illumination
5 White light LEDs
Adjustments
Volume, Brightness, and Contrast
Lens size (mm)
3.6
Storage Device
Micro SD Card (32GB Max.)
Sensitivity (Lux)
0.1
User Interaction
0 - 9, *, #, and Bell
Type
Graphical User Interface
Communication Protocol
BUS
Code Lengths
2 - 6
Recommended BUS Cable
Cat5e or higher
Maximum Access Codes
10
Operating Temperature (°C)
-20 to +40
Component 3
Quantity
Supply Voltage (V AC)
100 - 230
BUS Output
24V DC @ 800mA
Effective Distance to Doorstation (m)
50
Effective Distance to Monitor (m)
100
Warranty Years
2
Additional Information
Simple 2-core Installation
Dimensions
Dimensions (mm)
90 x 60 x 105
Specifications
| Materials | ABS |
|---|---|
| Dimensions (mm) | 90 x 60 x 105 |
| Mounting | Surface or DIN Rail |
| Colour | White |
| Weight (Kg) | 0.55 |
| Operating Voltage (V DC) | 24 (BUS) |
| Effective Distance to PowerSupply (m) | 50 |
| Effective Distance to Power Supply (m) | 100 |
| Global Selections | Normally Open or Normally |
| Master/Slave | Yes (set by menus) |
| Lock outputs | 2 |
| Resolution | 700 TVL |
| Number of Speakers | 2 |
| Illumination | 5 White light LEDs |
| Adjustments | Volume, Brightness, and Contrast |
| Lens size (mm) | 3.6 |
| Storage Device | Micro SD Card (32GB Max.) |
| Sensitivity (Lux) | 0.1 |
| User Interaction | 0 - 9, *, #, and Bell |
| Type | Graphical User Interface |
| Communication Protocol | BUS |
| Code Lengths | 2 - 6 |
| Recommended BUS Cable | Cat5e or higher |
| Maximum Access Codes | 10 |
| Operating Temperature (°C) | -20 to +40 |
| Component 3 | Quantity |
| Supply Voltage (V AC) | 100 - 230 |
| BUS Output | 24V DC @ 800mA |
| Effective Distance to Doorstation (m) | 50 |
| Effective Distance to Monitor (m) | 100 |
| Warranty Years | 2 |
| Additional Information | Simple 2-core Installation |
Dimensions
| Dimensions (mm) | 90 x 60 x 105 |
|---|
Colour Video Door Entry Keypad System with Record Facility, White features
ESP APKITKPG Colour Video Door Entry Keypad System with Record Facility, White
