Fermax 7367 door station button module, Modular
About this product
Please note: this is a non-returnable item (excluding faulty goods)

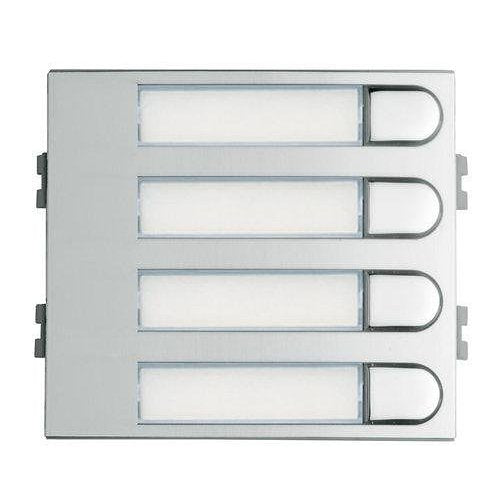

Fermax 7367 is a door station button module.
New SKYLINE panel call pushbutton modules, for fitting into the panel frame. Injected Zamak chrome finish Call buttons, in line with the curved panel profile. Sealed for outdoors.
Equipped with special gold plated contacts providing lasting durability. Pressing the call button is confirmed by an acoustic signal from the amplifier. Pushbuttons include a polycarbonate card slot (front access) to insert a label with the home owner's name and door number.
Built in lighting lets you see the card slots, even in pitch dark. Metallic with a streamlined shape in line with the panel's curved profile. Pushbutton module assembly is extremely simple.
Once the combination of modules is chosen according to the number of homes, we fit them into the panel frames. The mounting system consists of a gentle pressure from inside outwards. Finally, the different pushbutton modules are linked by means of the easy plug-in connectors included.
Simple and dual pushbutton modules available. The New SKYLINE electronic and video entry panel is a robust and elegant panel that stands out for its durability, beauty, resistance and reliability. SKYLINE is a new line of modular composition continuous profile electronic and video entry outdoor panels from FERMAX.
The line consists of 8 different-sized frames where the different modules can easily be fitted pushbuttons, card slots, camera, amplifier, access control, etc. The frames let you fit a given number of modules. There are two module sizes: V and W.
W modules are twice as wide as the V modules. Module Dimensions. - V module: 105,2x47,5 mm (width-height):
- W module: 105,2x95 mm (width-height): It is possible to combine two or more panels, as long as they are from the same series, to achieve greater capacity for pushbutton and accessories. Module for fitting to New SKYLINE Panel frame.
Key features
- Module with 4 SKYLINE VDS buttons
- Dimensions: 105.2x90mm
- Injected Zamak chrome finish
- Sealed for outdoor use
- Gold plated contacts for durability
- Acoustic signal confirmation
- Polycarbonate card slot with lighting
- Streamlined metallic shape
- Simple pushbutton module assembly
- Compatible with New SKYLINE Panel frame
If you are matching this to an existing installation, work from the 7367 part number rather than the description.
Specifications
General information
Technical information
Certifications
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Fermax |
|---|---|
| Manufacturer Part Number | 7367 |
| Product Type | Door Station Button Module |
General information
| Application/Usage | Door, Outdoor |
|---|
Technical information
| Device Supported | Door Entry Panel |
|---|
Certifications
| CE marking | Yes |
|---|---|
| RoHS compliance | Compliant |
| WEEE compliance | Compliant |
Physical characteristics
| Form Factor | Modular |
|---|---|
| Height | 95.00mm |
| Weight | 100.10g |
| Width | 105.20mm |
Miscellaneous
| Additional Information | New SKYLINE panel call pushbutton modules, for fitting into the panel frame. Injected Zamak chrome finish Call buttons, in line with the curved panel profile. Sealed for outdoors. Equipped with special gold plated contacts providing lasting |
|---|---|
| Compatibility | BUS2, Fermax Skyline Panel Frame, VDS |
| Indoor or outdoor use | Outdoor |
Attributes
| Compatibility | BUS2, Fermax Skyline Panel Frame, VDS |
|---|---|
| Device Supported | Door Entry Panel |
| Weight | 100.10g |
