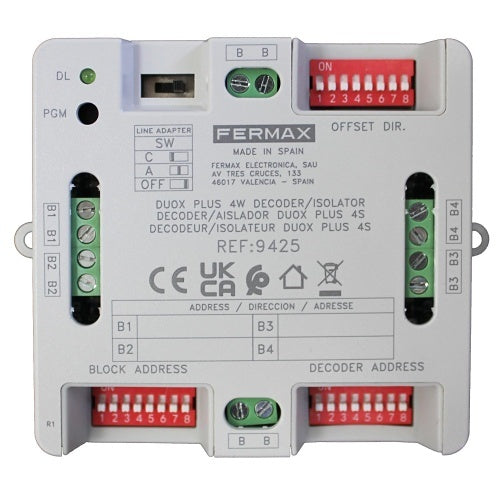

Fermax 9425 intercom & entry accessory
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Fermax 9425 is an intercom & entry accessory.
The new plant decoder is a device that offers many advantages to make a DUOX PLUS installation more powerful. Quoting the system will be much easier since we depend much less on distances, number of trunks, number of floors per floor, etc. Plant decoder with 4 outputs.
One output for each dwelling, allowing up to 3 terminals (monitors/telephones) per dwelling. Several decoders can be installed on each floor. Each output allows the branching distances on the floor to be increased up to 100 m.
The decoder is powered directly from the DUOX PLUS bus. Isolation against load and signal reflections. In the event of a malfunction (short circuit) of any of the decoder outputs, both the input DUOX PLUS bus and the rest of the outputs will continue to function normally.
In addition, when a short-circuit occurs in an output, the red LED associated with it will light up, thus indicating the output in which the fault has occurred. It is not necessary to enter the houses to program the address of the terminals since the decoder includes a group of microswitches (dipswitches) to program the addresses of each of its outputs (sequential programming). The decoder addresses can also be programmed non-sequentially (open programming).
After 30 minutes it locks again.
Key features
- The assembly can be done both by screw fixing, and by installation on a DIN rail
If you are matching this to an existing installation, work from the 9425 part number rather than the description.
-
Download
- 9425 — Product Manual
Specifications
Certifications
Physical characteristics
Specifications
| Brand Name | Fermax |
|---|---|
| Manufacturer Part Number | 9425 |
Certifications
| CE marking | Yes |
|---|---|
| RoHS compliance | Out of Scope |
| WEEE compliance | Compliant |
Physical characteristics
| Depth | 31.00mm |
|---|---|
| Height | 86.00mm |
| Width | 106.00mm |
