Fermax 8852 intercom housing
About this product
Please note: this is a non-returnable item (excluding faulty goods)

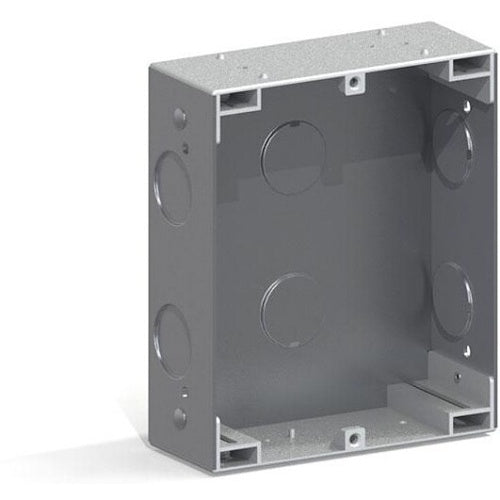

Fermax 8852 is an intercom housing.
Metal size S2 flush box for Cityline, Skyline and Classic panels. In order to install an entrance panel, a box must be placed in the wall where the panel will later be fixed.
Key features
- In order to install a panel it is necessary to place a box in the wall where we will subsequently fix the panel
- The flushboxes are manufactured in aluminium and zamak, with hinges which can fold in any direction, allowing to hold the panel still during the wiring procedure. They have circular marks at the bottom of the box which can be easily pierced with a slight pressure, allowing to make the way for the cables to go through
- When different panels, always of the same series, are combined, it is necessary to use a set of joining bolts for a perfect fitting. A set of joining bolts is needed for each additional panel that is installed between every flushbox
- Available in all the series. Select the box of the necessary series depending on each case
If you are matching this to an existing installation, work from the 8852 part number rather than the description.
Specifications
Certifications
Physical characteristics
Specifications
| Brand Name | Fermax |
|---|---|
| Manufacturer Part Number | 8852 |
| Product Type | Mounting Box |
Certifications
| RoHS compliance | Exempt |
|---|---|
| WEEE compliance | Exempt |
Physical characteristics
| Depth | 51.00mm |
|---|---|
| Height | 114.00mm |
| Width | 115.00mm |
