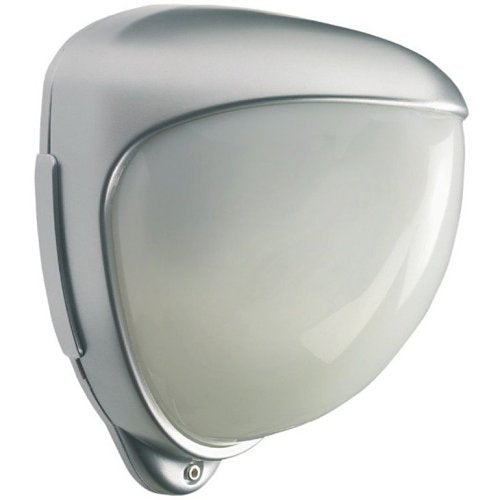

GJD GJD460 microwave motion detector, Wall Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
GJD GJD460 is a microwave motion detector.
In depth product detail
The BS8418 compliant D-TECT X Dual Tech detector is a battery powered outdoor motion detector designed to work with GJD's D-TECT X Wireless Receiver. It features a quad PIR sensor module and microwave sensor, stylish IP65 fully tampered housings with a discreet internal antenna. Units accept 2 x 3 volt CR123 batteries, 500m RF transmission range on 868MHz and individual code for pairing to the receiver.
The D-TECT X Receiver (GJD 392) can be linked in its base form to 4 detectors and this can then be expanded up to 16 detectors, with the use of the GJD393 D-TECT X Expander Module. Due to the number of individual detector codes (in excess of 16M), multiple receivers can be used on any site.
Key features
- battery powered outdoor motion detector
- designed to work with GJD’s D-TECT X Wireless Receiver.
- multiple receivers can be used on any site.
If you are matching this to an existing installation, work from the GJD460 part number rather than the description.
Specifications
General information
Technical information
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | GJD |
|---|---|
| Manufacturer Part Number | GJD460 |
| Product Type | Motion Sensor |
General information
| Application/Usage | Outdoor |
|---|
Technical information
| Connectivity Technology | Wireless |
|---|---|
| Maximum Motion Sensing Distance | 15m |
| Maximum Outdoor Detection Range | 15m |
| Passive Infrared Sensor (PIR) | Yes |
| Sensor Type | Infrared Sensor |
| Wireless Operating Distance | 500m |
Physical characteristics
| Height | 145.00mm |
|---|---|
| Material | ABS |
| Width | 120.00mm |
Power description
| Input Voltage | 3V DC |
|---|---|
| Power Source | Battery |
Product information
| Mount Type | Wall Mount |
|---|
Miscellaneous
| Compatibility | GJD's D-TECT X Wireless Receiver |
|---|---|
| Features | Adjustable pan and tilt, Aesthetically pleasing design, Discreet internal antenna, Easy to install, Highly cost effective, Modern design |
| Indoor or outdoor use | Outdoor |
Attributes
| Compatibility | GJD's D-TECT X Wireless Receiver |
|---|---|
| Input Voltage | 3V DC |
| Power Source | Battery |
