Hanwha Vision QNO-6022R bullet camera, 2MP

Free Delivery
£ 213 21
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

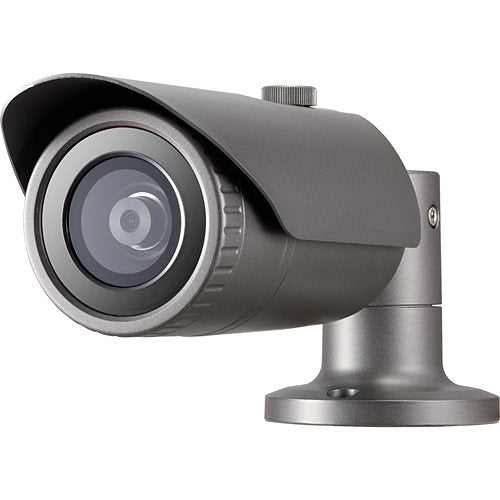

Hanwha Vision QNO-6022R is a bullet camera from the Q range.

The QNO-6022R is a powerful 2 MP Network IR Bullet Camera designed to enhance your security system. It offers clear and detailed video footage with its 2-megapixel resolution and wide field of view provided by the 4mm fixed lens. The camera supports smooth video streaming at 30fps and various video compression codecs.

With Day & Night functionality and Wide Dynamic Range (WDR), the camera ensures optimal performance in different lighting conditions. It also includes intelligent detection features like motion detection and tampering detection to alert you to potential threats. The camera supports convenient storage with a micro SD memory slot and offers flexible installation options with PoE and analog video out.

The QNO-6022R is built to withstand outdoor conditions with its IP66 weatherproof rating, IR viewable length of 25 meters, and IK10 vandal resistance. It supports hallway view and Lens Distortion Correction (LDC) for more accurate images. Additionally, its compatibility with Genetec Stratocast provides seamless integration with cloud-based video management systems.

Key features

  • 2MP (1920 x 1080) resolution
  • Built-in 4mm fixed lens
  • 30fpsat all resolutions (H.265/H.264)

If you are matching this to an existing installation, work from the QNO-6022R part number rather than the description.

£ 213 21
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£213.21 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
QNO-6022R
Product Series
Q
Product Type
Bullet Camera
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
4.00mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
25.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4mm
Lens Included
Yes
Maximum Focal Length
4.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Silver
Durability
Vandal Resistant, Weatherproof
Form Factor
Bullet
Weight
700.00g
Power description
Input Voltage
12V DC
Product information
Diameter
70.00mm
Length
246.00mm
Mount Type
Junction Box Mount, Pole Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
microSD Card, Network Attached Storage (NAS)
Miscellaneous
Impact protection
IK10
Attributes
Indoor or outdoor use
Outdoor
Input Voltage
12V DC
Weight
700.00g

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number QNO-6022R
Product Series Q
Product Type Bullet Camera

Technical information

Connectivity Technology Wired
Effective resolution 2MP
Field of View Diagonal, Horizontal, Vertical
Lens Type Fixed
Maximum Aperture f/1.6
Maximum Frame Rate 30fps
Minimum Focal Length 4.00mm
Night Vision Yes
Night Vision Type Active Illumination, Near-Infrared (NIR)
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 25.00m

Certifications

Ingress protection IP66

Display & graphics

Maximum video resolution 1920 x 1080

Environmental conditions

Maximum Operating Temperature 55°C
Minimum Operating Temperature -30°C
Operating Humidity 90%

Exposure

Longest Shutter Speed 1/5 Second
Minimum Illumination 0.0000lux
Shortest Shutter Speed 1/12000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 4mm
Lens Included Yes
Maximum Focal Length 4.00mm

Network & communication

Remote Management Yes

Physical characteristics

Colour Silver
Durability Vandal Resistant, Weatherproof
Form Factor Bullet
Weight 700.00g

Power description

Input Voltage 12V DC

Product information

Diameter 70.00mm
Length 246.00mm
Mount Type Junction Box Mount, Pole Mount

Storage

Recording Formats H.264, H.265 / HEVC
Storage Type microSD Card, Network Attached Storage (NAS)

Miscellaneous

Impact protection IK10

Attributes

Indoor or outdoor use Outdoor
Input Voltage 12V DC
Weight 700.00g

Hanwha Vision QNO-6022R bullet camera

Hanwha Vision QNO-6022R bullet camera, 2MP

Who this is for

For the installer — this is the bullet camera supplied under Hanwha Vision part number QNO-6022R. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a bullet camera made by Hanwha Vision. The part number QNO-6022R is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this bullet camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact bullet camera I have been quoted? Check the manufacturer part number QNO-6022R against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against QNO-6022R answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Hanwha Vision QNO-6022R bullet camera
Hanwha Vision

Hanwha Vision QNO-6022R bullet camera, 2MP

£213.21

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision QNO-6022R is a bullet camera from the Q range.

The QNO-6022R is a powerful 2 MP Network IR Bullet Camera designed to enhance your security system. It offers clear and detailed video footage with its 2-megapixel resolution and wide field of view provided by the 4mm fixed lens. The camera supports smooth video streaming at 30fps and various video compression codecs.

With Day & Night functionality and Wide Dynamic Range (WDR), the camera ensures optimal performance in different lighting conditions. It also includes intelligent detection features like motion detection and tampering detection to alert you to potential threats. The camera supports convenient storage with a micro SD memory slot and offers flexible installation options with PoE and analog video out.

The QNO-6022R is built to withstand outdoor conditions with its IP66 weatherproof rating, IR viewable length of 25 meters, and IK10 vandal resistance. It supports hallway view and Lens Distortion Correction (LDC) for more accurate images. Additionally, its compatibility with Genetec Stratocast provides seamless integration with cloud-based video management systems.

Key features

If you are matching this to an existing installation, work from the QNO-6022R part number rather than the description.
