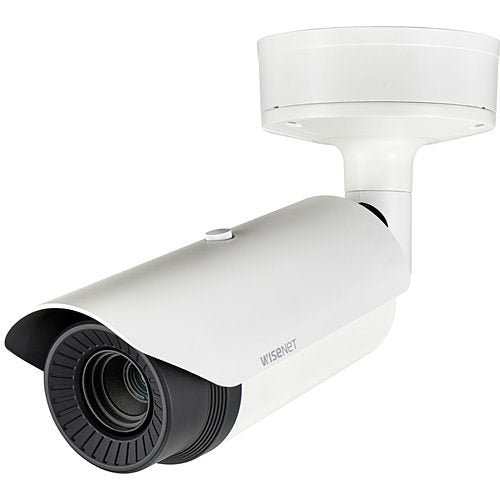

Hanwha Vision TNO-4030T IP bullet camera, 640 x 480

Free Delivery
£ 4,569 18
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision TNO-4030T is an IP bullet camera from the T range.

built-in analysis: directional video motion detection, tampering, loitering, audio detection with sound classification, shock detection, temperature change detection, SD(HC/XC) card slot for optional cards up to 256 GB, Hallway View, vandal-resistant IP66/IK10, analog video output for adjustment, Micro-USB connection, private masking, 1 alarm input and 2 outputs, gyro sensor for image stabilization, WiseStream II support

Key features

  • Up to 640 x 480 resolution for surveillance in real-time

If you are matching this to an existing installation, work from the TNO-4030T part number rather than the description.

£ 4,569 18
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£4,569.18 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
TNO-4030T
Product Series
T
Product Type
Thermal Imaging Cameras
Technical information
Connectivity Technology
Wired
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1
Maximum Frame Rate
30fps
Minimum Focal Length
13.00mm
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual
Video Signal Format
CVBS (Composite)
Camera
Image Sensor Type
Microbolometer
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
640 x 480
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
13mm
Lens Included
Yes
Maximum Focal Length
13.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Form Factor
Bullet
Height
401.80mm
Weight
3.12kg
Power description
Input Voltage
12V DC, 24V AC, PoE
Product information
Diameter
102.00mm
Mount Type
Ceiling Mount, Wall Mount
Storage
Recording Formats
H.264
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Miscellaneous
Impact protection
IK10
Attributes
Indoor or outdoor use
Outdoor
Input Voltage
12V DC, 24V AC, PoE
Weight
3.12kg

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number TNO-4030T
Product Series T
Product Type Thermal Imaging Cameras

Technical information

Connectivity Technology Wired
Field of View Diagonal, Horizontal, Vertical
Lens Type Fixed
Maximum Aperture f/1
Maximum Frame Rate 30fps
Minimum Focal Length 13.00mm
Night Vision Type Active Illumination, Near-Infrared (NIR)
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual
Video Signal Format CVBS (Composite)

Camera

Image Sensor Type Microbolometer

Certifications

Ingress protection IP66

Display & graphics

Maximum video resolution 640 x 480

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -40°C
Operating Humidity 90%

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 13mm
Lens Included Yes
Maximum Focal Length 13.00mm

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Form Factor Bullet
Height 401.80mm
Weight 3.12kg

Power description

Input Voltage 12V DC, 24V AC, PoE

Product information

Diameter 102.00mm
Mount Type Ceiling Mount, Wall Mount

Storage

Recording Formats H.264
Storage Type SD Card

Video

Analog Video Signal Format CVBS (Composite Video Baseband Signal)

Miscellaneous

Impact protection IK10

Attributes

Indoor or outdoor use Outdoor
Input Voltage 12V DC, 24V AC, PoE
Weight 3.12kg

Hanwha Vision TNO-4030T IP bullet camera

Hanwha Vision TNO-4030T IP bullet camera, 640 x 480

Who this is for

For the installer — this is the IP bullet camera supplied under Hanwha Vision part number TNO-4030T. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an IP bullet camera made by Hanwha Vision. The part number TNO-4030T is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this IP bullet camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact IP bullet camera I have been quoted? Check the manufacturer part number TNO-4030T against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against TNO-4030T answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Hanwha Vision TNO-4030T IP bullet camera
Hanwha Vision

Hanwha Vision TNO-4030T IP bullet camera, 640 x 480

£4,569.18

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision TNO-4030T is an IP bullet camera from the T range.

built-in analysis: directional video motion detection, tampering, loitering, audio detection with sound classification, shock detection, temperature change detection, SD(HC/XC) card slot for optional cards up to 256 GB, Hallway View, vandal-resistant IP66/IK10, analog video output for adjustment, Micro-USB connection, private masking, 1 alarm input and 2 outputs, gyro sensor for image stabilization, WiseStream II support

Key features

If you are matching this to an existing installation, work from the TNO-4030T part number rather than the description.

View product
