Hanwha Vision PNM-C32083RVQ network camera, 32MP

Free Delivery
£ 1,966 50
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

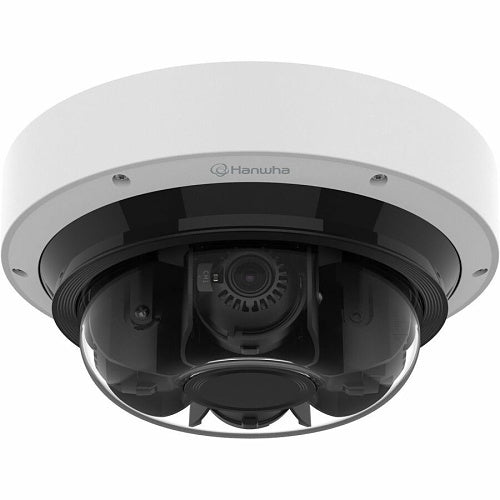

Hanwha Vision PNM-C32083RVQ is a network camera from the P range.

The new 4CH AI Multi-directional camera detect and classify people, vehicles in real time, greatly enhancing the accuracy of video analytics. AI algorithms can discern person as distinct objects separate from their surroundings such as waving trees, shadows, or animals.

Key features

  • 360° Analytics events based on AI engine: Classified object (Person/Face/Vehicle/License plate)
  • 360° Attributes search (Vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
  • AI based loitering detection and line crossing detection
  • AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
  • Compact size & semi-modular design
  • Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)
  • Reinforced durability (IP66, IK10, NEMA4X)

If you are matching this to an existing installation, work from the PNM-C32083RVQ part number rather than the description.

£ 1,966 50
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,966.50 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hanwha Vision
Manufacturer Part Number
PNM-C32083RVQ
Product Series
P
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
32MP
Field of View
Diagonal, Horizontal, Vertical
Field of View (Horizontal)
109.0°
Field of View (Vertical)
55.00°
Lens Type
Varifocal
Maximum Aperture
f/1.5
Maximum Frame Rate
20fps
Minimum Focal Length
3.30mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
2.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
20.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
3840 x 2160
Number of Sensors
4
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/12000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.3-5.7mm
Lens Included
Yes
Maximum Focal Length
5.70mm
Minimum Aperture
f/1.9
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Dome
Weight
2.82kg
Product information
Diameter
250.00mm
Mount Type
Conduit Box Mount, Gang Box Mount, Pendant Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Features
AI Analytics, Alarm Triggering, Back Light Compensation (BLC), Day/Night, Gain Control, Human Detection, Motion Detection, Privacy Masking, Vehicle Detection, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Weight
2.82kg

Specifications

Brand Name Hanwha Vision
Manufacturer Part Number PNM-C32083RVQ
Product Series P
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 32MP
Field of View Diagonal, Horizontal, Vertical
Field of View (Horizontal) 109.0°
Field of View (Vertical) 55.00°
Lens Type Varifocal
Maximum Aperture f/1.5
Maximum Frame Rate 20fps
Minimum Focal Length 3.30mm
Night Vision Yes
Night Vision Type Infrared (IR)
Optical Zoom 2.0x
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 20.00m

Certifications

Ingress protection IP66

Display & graphics

Maximum video resolution 3840 x 2160
Number of Sensors 4

Environmental conditions

Maximum Operating Temperature 55°C
Minimum Operating Temperature -40°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1/5 Second
Minimum Illumination 0.0000lux
Shortest Shutter Speed 1/12000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 3.3-5.7mm
Lens Included Yes
Maximum Focal Length 5.70mm
Minimum Aperture f/1.9

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Weight 2.82kg

Product information

Diameter 250.00mm
Mount Type Conduit Box Mount, Gang Box Mount, Pendant Mount

Storage

Recording Formats H.264, H.265 / HEVC
Storage Type SD Card

Video

Maximum Resolution 1280 x 720

Miscellaneous

Features AI Analytics, Alarm Triggering, Back Light Compensation (BLC), Day/Night, Gain Control, Human Detection, Motion Detection, Privacy Masking, Vehicle Detection, Wide Dynamic Range
Impact protection IK10
Indoor or outdoor use Outdoor

Attributes

Weight 2.82kg

Hanwha Vision PNM-C32083RVQ network camera

Hanwha Vision PNM-C32083RVQ network camera, 32MP

Who this is for

For the installer — this is the network camera supplied under Hanwha Vision part number PNM-C32083RVQ. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a network camera made by Hanwha Vision. The part number PNM-C32083RVQ is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this network camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact network camera I have been quoted? Check the manufacturer part number PNM-C32083RVQ against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against PNM-C32083RVQ answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
