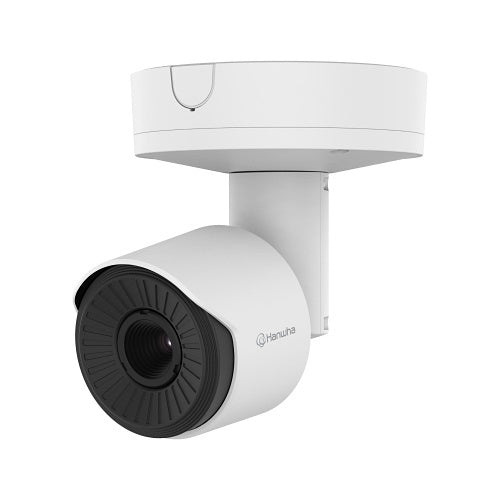

Hanwha Vision TNO-C3040T thermal imaging camera, 13mm

Please note: this is a non-returnable item (excluding faulty goods)

Hanwha Vision TNO-C3040T is a thermal imaging camera from the T range.

This page covers Hanwha Vision part TNO-C3040T. Everything below is recorded against that exact part number rather than against the wider range it belongs to.

The figures held against it cover field of view, lens type, maximum frame rate among others. Anything not listed we have not stated.

Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.

Key features

• Field of View: Diagonal, Horizontal, Vertical. This is the figure the record carries for this exact part number.
• Lens Type: Fixed. Parts in the same family can differ here, so check the code rather than the family.
• Maximum Frame Rate: 30fps. It is listed for this part number, not for the range as a whole.
• Ingress protection: Rated IP66, which under the rating scale means dust-tight and rated against powerful water jets. Where your specification names a figure, compare it against this one before ordering.
• RoHS compliance: Recorded as out of scope for the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. Parts in the same family can differ here, so check the code rather than the family.
• WEEE compliance: Recorded as compliant with the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. This is the figure the record carries for this exact part number.
• Operating Humidity: 0-95% RH (Non-Condensing). Where your specification names a figure, compare it against this one before ordering.
• Operating Temperature (T-T): -40-60°C. It is listed for this part number, not for the range as a whole.
• Storage Temperature (T-T): -50-60°C. This is the figure the record carries for this exact part number.
• Focal Length: 13mm. Parts in the same family can differ here, so check the code rather than the family.
• Memory Card Supported: Present on this part number. The record states it as a property of this part rather than of the wider range. It is listed for this part number, not for the range as a whole.
• Colour: White. Where your specification names a figure, compare it against this one before ordering.
• Material: Aluminum. Parts in the same family can differ here, so check the code rather than the family.
• Weight: 1730.00g. This is the figure the record carries for this exact part number.

Use cases

Specify this part where the thermal imaging camera role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.

• Exposure: Rated IP66, which under the rating scale means dust-tight and rated against powerful water jets.

If you are matching this to an existing installation, work from the TNO-C3040T part number rather than the description.
