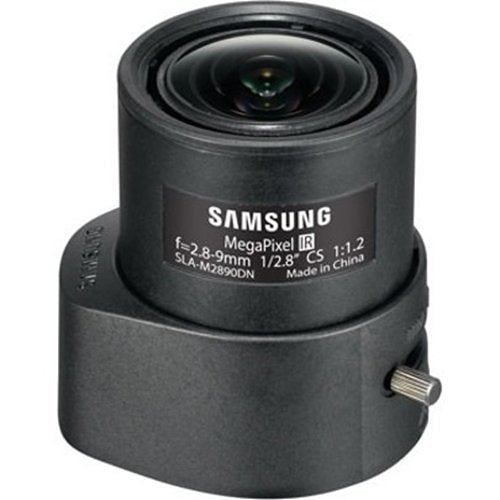

Hanwha Vision SLA-M2890PN varifocal lense, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision SLA-M2890PN is a varifocal lense.
the specified aperture angle is only valid if the camera's capture element is the same size as the lens specification, refer to the data sheet for aperture angles on smaller capture elements, never use a lens on a camera whose capture element is larger than the lens specification
Key features
- 1/2.8" CS-mount Auto Iris 2MP Lens
- F1.2 P-Iris type auto iris
- Varifocal 2.8 ~ 9mm / 0.11" ~ 0.35"
If you are matching this to an existing installation, work from the SLA-M2890PN part number rather than the description.
Specifications
General information
Technical information
Certifications
Lens
Physical characteristics
Miscellaneous
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | SLA-M2890PN |
| Product Type | Varifocal Lenses |
General information
| Application/Usage | Surveillance Camera |
|---|
Technical information
| Effective resolution | 2MP |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Iris Type | P-iris |
| Lens Mount Type | CS-Mount |
| Lens Type | Zoom |
| Maximum Aperture | f/1.2 |
| Minimum Focal Length | 2.80mm |
| Optical Zoom | 3.0x |
Certifications
| CE marking | Yes |
|---|
Lens
| Focal Length | 2.8-9mm |
|---|---|
| Maximum Focal Length | 9.00mm |
Physical characteristics
| Depth | 54.30mm |
|---|---|
| Height | 51.50mm |
| Width | 45.00mm |
Miscellaneous
| Sensor Size Compatibility | 1/2.8" |
|---|
