Hanwha Vision SLA-M8550D varifocal lense, 3MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)

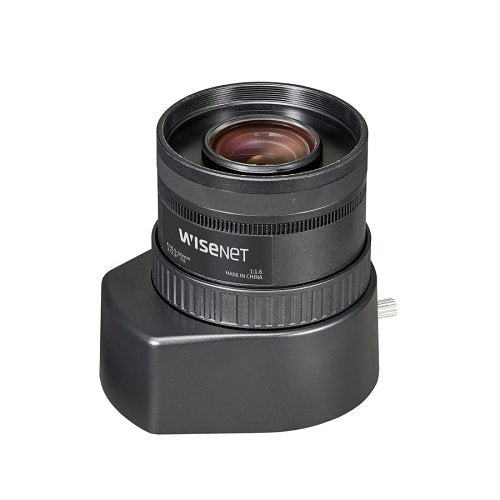

Hanwha Vision SLA-M8550D is a varifocal lense.
This page covers Hanwha Vision part SLA-M8550D. Everything below is recorded against that exact part number rather than against the wider range it belongs to.
The figures held against it cover application/usage, effective resolution, field of view among others. Anything not listed we have not stated.
Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.
Key features
- Application/Usage: Surveillance Camera. This is the figure the record carries for this exact part number.
- Effective resolution: 3MP. Parts in the same family can differ here, so check the code rather than the family.
- Field of View: Diagonal, Horizontal, Vertical. It is listed for this part number, not for the range as a whole.
- Iris Type: DC Auto Iris. Where your specification names a figure, compare it against this one before ordering.
- Lens Mount Type: CS-Mount. Parts in the same family can differ here, so check the code rather than the family.
- Lens Type: Zoom. This is the figure the record carries for this exact part number.
- Maximum Aperture: f/1.6. Where your specification names a figure, compare it against this one before ordering.
- Minimum Focal Length: 8.50mm. It is listed for this part number, not for the range as a whole.
- Optical Zoom: 6.0x. This is the figure the record carries for this exact part number.
- RoHS compliance: Recorded as compliant with the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. Parts in the same family can differ here, so check the code rather than the family.
- WEEE compliance: Recorded as compliant with the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. It is listed for this part number, not for the range as a whole.
- Autofocus: Not present on this part number. Where a related part in the same range carries it, that does not carry across to this one. Where your specification names a figure, compare it against this one before ordering.
- Focal Length: 8.5-50mm. Parts in the same family can differ here, so check the code rather than the family.
- Maximum Focal Length: 50.00mm. This is the figure the record carries for this exact part number.
Use cases
Specify this part where the varifocal lense role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.
- Typical application: Surveillance Camera.
If you are matching this to an existing installation, work from the SLA-M8550D part number rather than the description.
-
Download
- SLA-M8550D — User Manual
Specifications
General information
Technical information
Certifications
Lens
Physical characteristics
Miscellaneous
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | SLA-M8550D |
| Product Type | Varifocal Lenses |
General information
| Application/Usage | Surveillance Camera |
|---|
Technical information
| Effective resolution | 3MP |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Iris Type | DC Auto Iris |
| Lens Mount Type | CS-Mount |
| Lens Type | Zoom |
| Maximum Aperture | f/1.6 |
| Minimum Focal Length | 8.50mm |
| Optical Zoom | 6.0x |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Lens
| Autofocus | No |
|---|---|
| Focal Length | 8.5-50mm |
| Maximum Focal Length | 50.00mm |
Physical characteristics
| Depth | 58.20mm |
|---|---|
| Height | 60.00mm |
| Width | 46.00mm |
Miscellaneous
| Sensor Size Compatibility | 1/2.8" |
|---|
