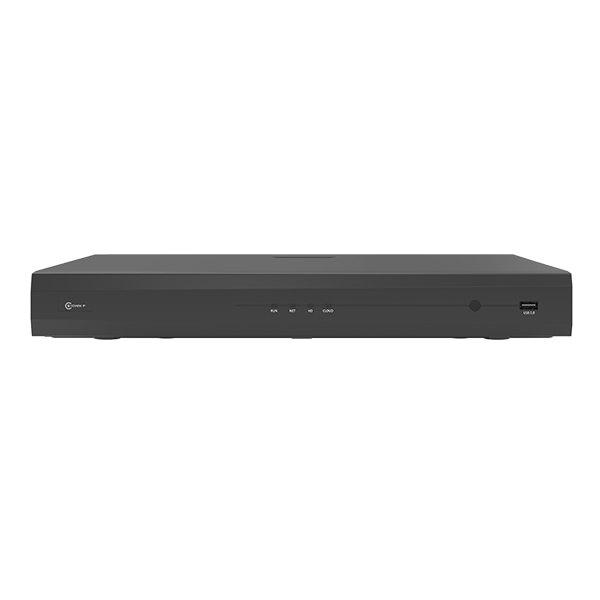

HDview HC816R16TB IP PoE 8MP 16CH NVR 16TB
Free Delivery
£
1,551
76
(Incl. VAT)
2 Years Warranty
IP PoE 8MP 16CH NVR 16TB
About this product
About this product
The HDview HC816R16TB is an IP PoE 8MP 16CH NVR 16TB. Featuring 16 channel recording and 8MP resolution, it is built for dependable professional installation.
Key Features
- H.265 Video Compression for Efficient Storage
- Intelligent Features such as Line Cross Detection & Perimeter Intrusion Detection
- Continuous/Scheduled/Motion Detection/Intelligent Record Modes
- Remote Monitoring via APP
- 16 channel recording
-
Download
- HC816R16TB Tech Sheet
£
1,551
76
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
315 x 380 x 53
Maximum Capacity
10TB (Per Disk)
Weight (Kg)
2.6
Warranty (Years)
2
Resolution
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p
Power Consumption (W)
<10 (Without Hard Disk)
Operating Temperature (°C)
-10 to +55
Inputs
4
Outputs
1
PoE Ports
16
Video Input Channels
16
Channels (RCA)
1
Max. PoE Consumption Available (W)
30 (Per Port), 240 (Total)
Display Video Output
1 x HDMI, 1 x VGA
Display Split
1, 4, 6, 8 & 9
Sync Playback
16 Channel
USB Interface
1 x USB (2.0), 1 x USB (3.0)
Supplied
USB Mouse, Quickstart Guide, C13 Mains Cable
Compatible Products
The range of 24/7 HDview 5MP and 8MP and Rekor IP 2MP Cameras
IPSW4POE: 4 Channel POE Switch
ONVIF (Profile S, G, T) Cameras
Dimensions
Dimensions (mm)
315 x 380 x 53
Specifications
| Dimensions (mm) | 315 x 380 x 53 |
|---|---|
| Maximum Capacity | 10TB (Per Disk) |
| Weight (Kg) | 2.6 |
| Warranty (Years) | 2 |
| Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p |
| Power Consumption (W) | <10 (Without Hard Disk) |
| Operating Temperature (°C) | -10 to +55 |
| Inputs | 4 |
| Outputs | 1 |
| PoE Ports | 16 |
| Video Input Channels | 16 |
| Channels (RCA) | 1 |
| Max. PoE Consumption Available (W) | 30 (Per Port), 240 (Total) |
| Display Video Output | 1 x HDMI, 1 x VGA |
| Display Split | 1, 4, 6, 8 & 9 |
| Sync Playback | 16 Channel |
| USB Interface | 1 x USB (2.0), 1 x USB (3.0) |
| Supplied | USB Mouse, Quickstart Guide, C13 Mains Cable |
| Compatible Products | The range of 24/7 HDview 5MP and 8MP and Rekor IP 2MP Cameras |
| IPSW4POE: 4 Channel POE Switch | ONVIF (Profile S, G, T) Cameras |
Dimensions
| Dimensions (mm) | 315 x 380 x 53 |
|---|
