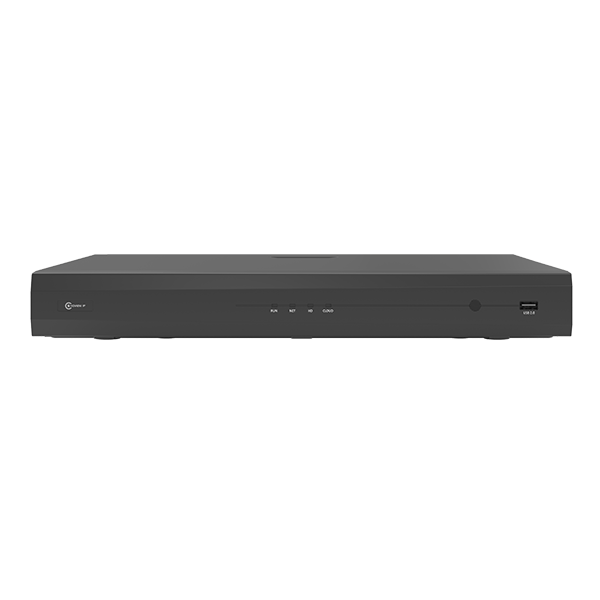

HDview HC816R8TB IP PoE 8MP 16CH NVR 8TB
About this product
The HDview HC816R8TB is an IP PoE 8MP 16CH NVR 8TB. Featuring 6 channel recording and 8MP resolution, it is built for dependable professional installation.
Key Features
- H.265 Video Compression for Efficient Storage
- Intelligent Features such as Line Cross Detection & Perimeter Intrusion Detection
- Continuous/Scheduled/Motion Detection/Intelligent Record Modes
- Remote Monitoring via APP
- 6 channel recording
In Detail
Part of ESP's professional surveillance range, this network video recorder is designed for dependable around-the-clock monitoring of commercial and domestic premises, capturing usable footage in demanding real-world conditions.
It pairs with ESP recorders, power supplies and accessories for a complete CCTV system, giving installers a consistent, well-supported platform to specify and maintain.
The HDview HC816R8TB is a practical choice wherever a reliable network video recorder is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | HDview |
| Product code | HC816R8TB |
| Dimensions (mm) | 315 x 380 x 53 |
| Maximum Capacity | 10TB (Per Disk) |
| Weight (Kg) | 2.6 |
| Internal HDD | 8TB (2 x SATA) |
| Warranty (Years) | 2 |
| Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p |
| Power Consumption (W) | <10 (Without Hard Disk) |
| Operating Temperature (°C) | -10 to +55 |
| Inputs | 4 |
| Outputs | 1 |
| PoE Ports | 16 |
| Video Input Channels | 16 |
| Channels (RCA) | 1 |
| Max. PoE Consumption Available (W) | 30 (Per Port), 240 (Total) |
| Display Video Output | 1 x HDMI, 1 x VGA |
| Display Split | 1, 4, 6, 8 & 9 |
| Sync Playback | 16 Channel |
| USB Interface | 1 x USB (2.0), 1 x USB (3.0) |
| Supplied | USB Mouse, Quickstart Guide, C13 Mains Cable |
| Compatible Products | The range of 24/7 HDview 5MP and 8MP and Rekor IP 2MP Cameras |
| IPSW4POE: 4 Channel POE Switch | ONVIF (Profile S, G, T) Cameras |
| GTIN | 5060654466039 |
| Commodity Code | 8525890000 |
