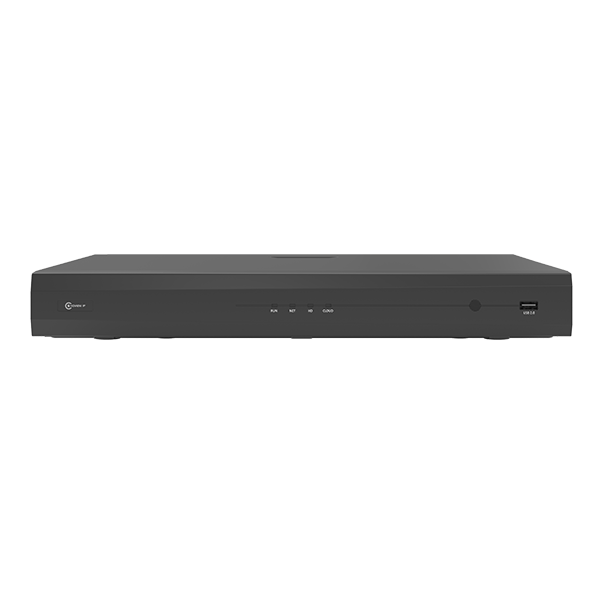

HDview HC832R16TB IP PoE 8MP 32CH NVR 16TB
Free Delivery
£
1,580
74
(Incl. VAT)
2 Years Warranty
IP PoE 8MP 32CH NVR 16TB
About this product
About this product
The HDview HC832R16TB is an IP PoE 8MP 32CH NVR 16TB. Featuring 32 channel recording and 8MP resolution, it is built for dependable professional installation.
Key Features
- H.265 Video Compression for Efficient Storage
- Intelligent Features such as Line Cross Detection & Perimeter Intrusion Detection
- Continuous/Scheduled/Motion Detection/Intelligent Record Modes
- Remote Monitoring via APP
- 32 channel recording
-
Download
- HC832R16TB Tech Sheet
£
1,580
74
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
362 x 400 x 74
Maximum Capacity
10TB (Per Disk)
Weight (Kg)
<5
Warranty (Years)
2
Resolution
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p
Power Consumption (W)
<15 (Without Hard Disk)
Operating Temperature (°C)
-10 to +55
Serial Ports
1 x RS485
Inputs
16
Outputs
4
PoE Ports
16
Video Input Channels
32
Channels (RCA)
1
Max. PoE Consumption Available (W)
30 (Per Port), 150 (Total)
Display Video Output
1 x HDMI, 1 x VGA
Display Split
1, 4, 6, 8, 9, 16, 25 & 36
Sync Playback
32 Channel
Data
RS485
USB Interface
1 x USB (2.0), 1 x USB (3.0)
Compatible Products
The range of 24/7 HDview 5MP and 8MP and Rekor IP 2MP Cameras
IPSW4POE: 4 Channel POE Switch
ONVIF (Profile S, G, T) Cameras
Dimensions
Dimensions (mm)
362 x 400 x 74
Specifications
| Dimensions (mm) | 362 x 400 x 74 |
|---|---|
| Maximum Capacity | 10TB (Per Disk) |
| Weight (Kg) | <5 |
| Warranty (Years) | 2 |
| Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p |
| Power Consumption (W) | <15 (Without Hard Disk) |
| Operating Temperature (°C) | -10 to +55 |
| Serial Ports | 1 x RS485 |
| Inputs | 16 |
| Outputs | 4 |
| PoE Ports | 16 |
| Video Input Channels | 32 |
| Channels (RCA) | 1 |
| Max. PoE Consumption Available (W) | 30 (Per Port), 150 (Total) |
| Display Video Output | 1 x HDMI, 1 x VGA |
| Display Split | 1, 4, 6, 8, 9, 16, 25 & 36 |
| Sync Playback | 32 Channel |
| Data | RS485 |
| USB Interface | 1 x USB (2.0), 1 x USB (3.0) |
| Compatible Products | The range of 24/7 HDview 5MP and 8MP and Rekor IP 2MP Cameras |
| IPSW4POE: 4 Channel POE Switch | ONVIF (Profile S, G, T) Cameras |
Dimensions
| Dimensions (mm) | 362 x 400 x 74 |
|---|
IP PoE 8MP 32CH NVR 16TB features
