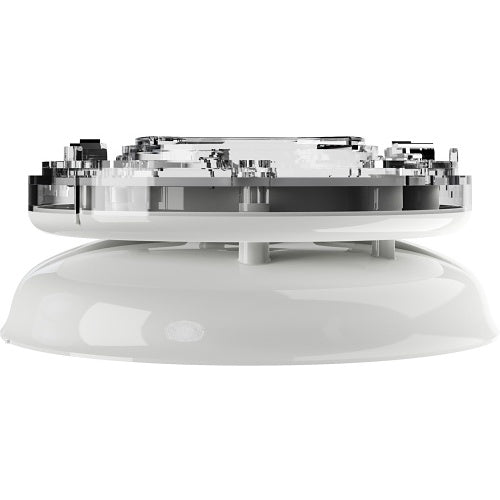

HOCHIKI YBO-BSB2(WHT)/WL security alarm, White

£ 56 12
(Incl. VAT) RRP: £67.34
Save £11.22

About this product

HOCHIKI YBO-BSB2(WHT)/WL is a security alarm.

Model YBO-BSB2(WHT)/WL is an O Rated EN54-23 compliant addressable loop powered Base Sounder with integral Beacon, innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBN-R/3) or the Isolator Bases (YBO-R/SCI or YBN-R/3(SCI)) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators. The unit can also be converted into a wall sounder beacon with the simple addition of a Cap (SI/CAP2(WHT)).

The sounder is Ingress Protection rated to IP21 and for internal use only. An Auto-Shutdown feature allows the user to set a fixed time within which the sounder or beacon will operate, before automatically shutting down, cutting noise pollution in the case of the sounder element. Sounder and Beacon elements can be operated independently from each other.

Key features

  • ‘O’ rated beacon to EN54-23
  • Single loop address - addressed via the TCH-B200 Hand Held Programmer
  • Variable sound output 50 ~ 98 dB(A) (±2 dB(A)) output at 1m
  • Sounder and beacon can operate independently
  • 0.5 or 1Hz flash frequency
  • Fits Hochiki standard or isolator base and supports ESP sensors, addressable beacons and addressable remote indicator
  • 51 user-selectable tones (all tones EN54-3 compatible)
  • Auto-shutdown feature prevents noise-pollution
  • Available with red or white LEDs

If you are matching this to an existing installation, work from the YBO-BSB2(WHT)/WL part number rather than the description.

£ 56 12
RRP: £67.34 Save £11.22
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£56.12 Incl. VAT £67.34
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
HOCHIKI
Manufacturer Part Number
YBO-BSB2(WHT)/WL
Product Type
Security Alarm
General information
Application/Usage
Remote Indicator
Technical information
Light Colour
White
Environmental conditions
Sound Emission
98dB
Physical characteristics
Colour
White
Depth
43.00mm
Height
113.00mm
Weight
160.00g
Width
113.00mm
Power description
Input Voltage
41V DC
Product information
Bulb/Tube Type
LED Bulb
Miscellaneous
Compatibility
Addressable Beacons, Addressable Remote Indicator, ESP Sensors, Hochiki Standard or Isolator Base
Attributes
Compatibility
Addressable Beacons, Addressable Remote Indicator, ESP Sensors, Hochiki Standard or Isolator Base
Indoor or outdoor use
Indoor
Input Voltage
41V DC
Weight
160.00g

Specifications

Brand Name HOCHIKI
Manufacturer Part Number YBO-BSB2(WHT)/WL
Product Type Security Alarm

General information

Application/Usage Remote Indicator

Technical information

Light Colour White

Environmental conditions

Sound Emission 98dB

Physical characteristics

Colour White
Depth 43.00mm
Height 113.00mm
Weight 160.00g
Width 113.00mm

Power description

Input Voltage 41V DC

Product information

Bulb/Tube Type LED Bulb

Miscellaneous

Compatibility Addressable Beacons, Addressable Remote Indicator, ESP Sensors, Hochiki Standard or Isolator Base

Attributes

Compatibility Addressable Beacons, Addressable Remote Indicator, ESP Sensors, Hochiki Standard or Isolator Base
Indoor or outdoor use Indoor
Input Voltage 41V DC
Weight 160.00g

HOCHIKI YBO-BSB2(WHT)/WL security alarm

HOCHIKI YBO-BSB2(WHT)/WL security alarm, White

Who this is for

For the installer — this is the security alarm supplied under HOCHIKI part number YBO-BSB2(WHT)/WL. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a security alarm made by HOCHIKI. The part number YBO-BSB2(WHT)/WL is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this security alarm is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact security alarm I have been quoted? Check the manufacturer part number YBO-BSB2(WHT)/WL against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against YBO-BSB2(WHT)/WL answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

HOCHIKI YBO-BSB2(WHT)/WL security alarm
Hochiki

HOCHIKI YBO-BSB2(WHT)/WL security alarm, White

£56.12 £67.34

HOCHIKI YBO-BSB2(WHT)/WL is a security alarm.

Model YBO-BSB2(WHT)/WL is an O Rated EN54-23 compliant addressable loop powered Base Sounder with integral Beacon, innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBN-R/3) or the Isolator Bases (YBO-R/SCI or YBN-R/3(SCI)) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators. The unit can also be converted into a wall sounder beacon with the simple addition of a Cap (SI/CAP2(WHT)).

The sounder is Ingress Protection rated to IP21 and for internal use only. An Auto-Shutdown feature allows the user to set a fixed time within which the sounder or beacon will operate, before automatically shutting down, cutting noise pollution in the case of the sounder element. Sounder and Beacon elements can be operated independently from each other.

Key features

If you are matching this to an existing installation, work from the YBO-BSB2(WHT)/WL part number rather than the description.
