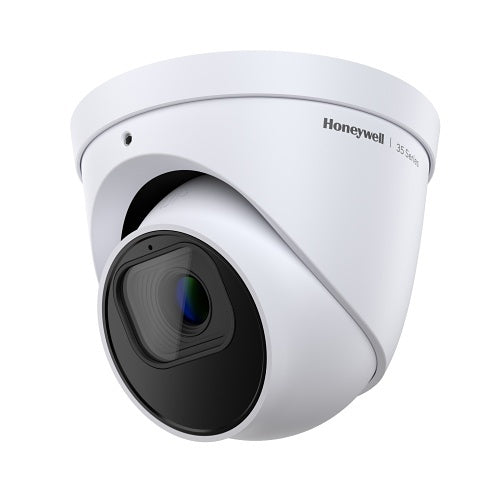

Honeywell Commercial Security HC35WE8R3 network camera, 8MP
Free Delivery
£
334
33
(Incl. VAT)
RRP: £401.20
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Honeywell Commercial Security HC35WE8R3 is a network camera from the 35 range.
This page covers Honeywell Commercial Security part HC35WE8R3. Everything below is recorded against that exact part number rather than against the wider range it belongs to.
The figures held against it cover connectivity technology, effective resolution, field of view among others. Anything not listed we have not stated.
Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.
Key features
- Connectivity Technology: Wired. This is the figure the record carries for this exact part number.
- Effective resolution: 8MP. Parts in the same family can differ here, so check the code rather than the family.
- Field of View: Horizontal, Vertical. It is listed for this part number, not for the range as a whole.
- Field of View (Horizontal): 97.0°. Where your specification names a figure, compare it against this one before ordering.
- Field of View (Vertical): 52.00°. Parts in the same family can differ here, so check the code rather than the family.
- Lens Type: Fixed. This is the figure the record carries for this exact part number.
- Maximum Aperture: f/2. Where your specification names a figure, compare it against this one before ordering.
- Maximum Frame Rate: 30fps. It is listed for this part number, not for the range as a whole.
- Minimum Focal Length: 2.80mm. This is the figure the record carries for this exact part number.
- Night Vision: Present on this part number. The record states it as a property of this part rather than of the wider range. Parts in the same family can differ here, so check the code rather than the family.
- Night Vision Type: Active Illumination, Near-Infrared (NIR). It is listed for this part number, not for the range as a whole.
- Video Formats: H.264 / AVC, H.265 / HEVC, MJPEG. Where your specification names a figure, compare it against this one before ordering.
- Video Resolution: 1280 x 720. Parts in the same family can differ here, so check the code rather than the family.
- Video Signal Format: NTSC, PAL. This is the figure the record carries for this exact part number.
Use cases
Specify this part where the network camera role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.
- Mounting: Recorded as ceiling mount, corner mount, junction box mount, pole mount, wall mount.
- Exposure: Rated IP66, IP67, which under the rating scale means dust-tight and rated against powerful water jets.
- Impact: Rated IK10, which under the rating scale means rated to withstand a 20 joule impact.
If you are matching this to an existing installation, work from the HC35WE8R3 part number rather than the description.
£
334
33
RRP: £401.20
Save £66.87
Price
Technical Details
Specifications
Brand Name
Honeywell Commercial Security
Manufacturer Part Number
HC35WE8R3
Product Series
35
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
8MP
Field of View
Horizontal, Vertical
Field of View (Horizontal)
97.0°
Field of View (Vertical)
52.00°
Lens Type
Fixed
Maximum Aperture
f/2
Maximum Frame Rate
30fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
CE marking
Yes
Ingress protection
IP66, IP67
RoHS compliance
Compliant
WEEE compliance
Compliant
Display & graphics
Maximum video resolution
3840 x 2160
Environmental conditions
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/8 Second
Shortest Shutter Speed
1/32000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8mm
Lens Included
Yes
Maximum Focal Length
2.80mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Waterproof
Form Factor
Ball
Power description
Input Voltage
12V DC
Product information
Mount Type
Ceiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Environmental certification
RoHS
Environmental status
Yes
Features
2D Noise Reduction, 3D Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Gain Control, Highlight Compensation (HLC), Motion Detection, Region of Interest, SD Card Local Storage, Wide Dynamic Range
Impact protection
IK10
Attributes
Input Voltage
12V DC
Specifications
| Brand Name | Honeywell Commercial Security |
|---|---|
| Manufacturer Part Number | HC35WE8R3 |
| Product Series | 35 |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Horizontal, Vertical |
| Field of View (Horizontal) | 97.0° |
| Field of View (Vertical) | 52.00° |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP66, IP67 |
| RoHS compliance | Compliant |
| WEEE compliance | Compliant |
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Environmental conditions
| Operating Humidity | 90% |
|---|
Exposure
| Longest Shutter Speed | 1/8 Second |
|---|---|
| Shortest Shutter Speed | 1/32000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Waterproof |
| Form Factor | Ball |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Mount Type | Ceiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental certification | RoHS |
|---|---|
| Environmental status | Yes |
| Features | 2D Noise Reduction, 3D Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Gain Control, Highlight Compensation (HLC), Motion Detection, Region of Interest, SD Card Local Storage, Wide Dynamic Range |
| Impact protection | IK10 |
Attributes
| Input Voltage | 12V DC |
|---|
