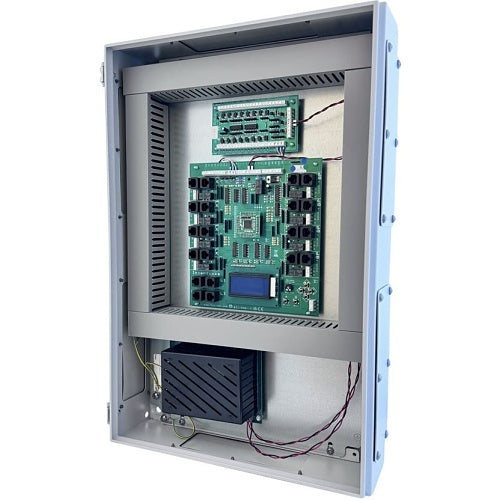

Hoyles IGUIC8-24 8 door programmable interlock 24v, Grey

Visit Access Control Systems
Free Delivery
£ 5,405 35
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hoyles IGUIC8-24 is a 8 door programmable interlock 24v.

The INTERGUARD IGUIC is a sophisticated fully programmable door interlock controller. The system allows up to 8 doors to be interlocked in various combinations. Each controller can be connected to 4 other controllers, allowing for very large and complex interlocking systems.

An LCD screen enables the user to easily programme the controller to set up the interlock, configure the links between controllers, set any timers, or adjust individual door parameters such as normally locked or normally unlocked. The controller has several pre-programmed modes for easy setup. The controller connects to an interface junction box at each door via 2 x RJ45 cables.

Devices at the door such as the maglock, buttons, LEDs, access control, etc., then terminate at the interface via screw terminals. Fire alarm inputs allow the operation of the IGUIC to be interrupted. One option will release all doors; the other keeps doors locked but allows more than one door to be released at a time.

Red and green operational indicators are provided at each door as shown below. These provide invaluable feedback to users. An integral 5A PSU is incorporated to cater for control and indication, and to supply power to the door locks, with both 12Vdc and 24Vdc available.

Key features

  • Programmable interlock controller
  • Up to 8 doors per controller
  • Each controller can connect to 4 controllers
  • LCD Screen for easy programming
  • Integral 12vdc or 24vdc 5A PSU
  • Secure and non-secure interlocking
  • Status indication at each door
  • Programmable fire alarm input
  • Relay outputs for door status and breach indications; 8 door only

If you are matching this to an existing installation, work from the IGUIC8-24 part number rather than the description.

£ 5,405 35
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£5,405.35 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Hoyles
Manufacturer Part Number
IGUIC8-24
Product Type
8 Door Programmable Interlock 24v
Technical information
Number of Doors
8
Certifications
RoHS compliance
Compliant
WEEE compliance
Compliant
Interfaces/ports
Network (RJ-45)
Yes
Physical characteristics
Colour
Grey
Width
800.00mm
Power description
Input Voltage
24V
Miscellaneous
Environmental certification
CE, RoHS
Attributes
Environmental status
Yes
Input Voltage
24V
Specifications
Technical information
Certifications
Interfaces/ports
Physical characteristics
Power description
Miscellaneous
Attributes

Specifications

Brand Name Hoyles
Manufacturer Part Number IGUIC8-24
Product Type 8 Door Programmable Interlock 24v

Technical information

Number of Doors 8

Certifications

RoHS compliance Compliant
WEEE compliance Compliant

Interfaces/ports

Network (RJ-45) Yes

Physical characteristics

Colour Grey
Width 800.00mm

Power description

Input Voltage 24V

Miscellaneous

Environmental certification CE, RoHS

Attributes

Environmental status Yes
Input Voltage 24V

Hoyles IGUIC8-24 8 door programmable interlock 24v

Hoyles IGUIC8-24 8 door programmable interlock 24v, Grey

Who this is for

For the installer — this is the 8 door programmable interlock 24v supplied under Hoyles part number IGUIC8-24. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a 8 door programmable interlock 24v made by Hoyles. The part number IGUIC8-24 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this 8 door programmable interlock 24v is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact 8 door programmable interlock 24v I have been quoted? Check the manufacturer part number IGUIC8-24 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against IGUIC8-24 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
