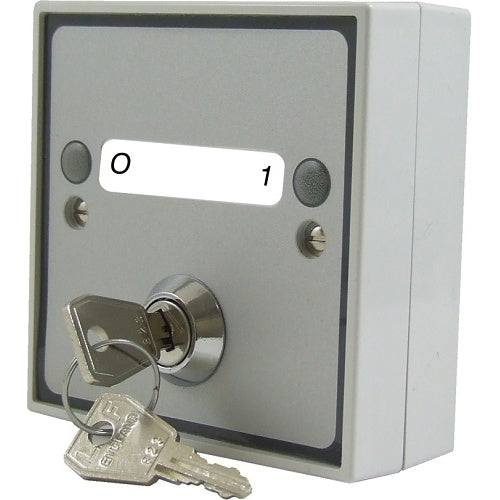

Hoyles S1709PRG key switch, White
About this product
Hoyles S1709PRG is a key switch.
This page covers Hoyles part S1709PRG. Everything below is recorded against that exact part number rather than against the wider range it belongs to.
The figures held against it cover application/usage, rohs compliance, weee compliance among others. Anything not listed we have not stated.
Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.
Key features
- Application/Usage: Door Strike, Magnetic Lock. This is the figure the record carries for this exact part number.
- RoHS compliance: Recorded as compliant with the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. Parts in the same family can differ here, so check the code rather than the family.
- WEEE compliance: Recorded as compliant with the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. It is listed for this part number, not for the range as a whole.
- Colour: White. Where your specification names a figure, compare it against this one before ordering.
- Depth: 36.00mm. Parts in the same family can differ here, so check the code rather than the family.
- Height: 87.00mm. This is the figure the record carries for this exact part number.
- Material: ABS. Where your specification names a figure, compare it against this one before ordering.
- Weight: 170.00g. It is listed for this part number, not for the range as a whole.
- Width: 87.00mm. This is the figure the record carries for this exact part number.
- Mount Type: Flush Mount, Surface Mount. Parts in the same family can differ here, so check the code rather than the family.
- Environmental certification: RoHS. It is listed for this part number, not for the range as a whole.
- Environmental status: Present on this part number. The record states it as a property of this part rather than of the wider range. Where your specification names a figure, compare it against this one before ordering.
- Package Contents: Back box (for surface mount). Parts in the same family can differ here, so check the code rather than the family.
- Weight: 170.00g. This is the figure the record carries for this exact part number.
Use cases
Specify this part where the key switch role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.
- Mounting: Recorded as flush mount, surface mount.
- Typical application: Door Strike, Magnetic Lock.
If you are matching this to an existing installation, work from the S1709PRG part number rather than the description.
Specifications
General information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Hoyles |
|---|---|
| Manufacturer Part Number | S1709PRG |
| Product Type | Key Switch |
General information
| Application/Usage | Door Strike, Magnetic Lock |
|---|
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 36.00mm |
| Height | 87.00mm |
| Material | ABS |
| Weight | 170.00g |
| Width | 87.00mm |
Power description
| Input Voltage | 30V DC |
|---|
Product information
| Mount Type | Flush Mount, Surface Mount |
|---|
Miscellaneous
| Environmental certification | RoHS |
|---|---|
| Environmental status | Yes |
| Package Contents | Back box (for surface mount) |
Attributes
| Input Voltage | 30V DC |
|---|---|
| Weight | 170.00g |
