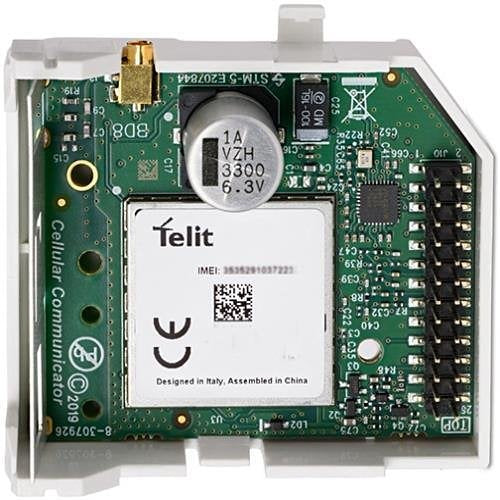

JCI Visonic 9-103877 lte communicator
About this product
JCI Visonic 9-103877 is a lte communicator.
Introduction
The LTE communicator is a plug-in cellular communication module that connects the PowerMaster control panel to the to the Cloud, PowerManage server, and to private phones. LTE enables a high-speed and highly reliable primary or backup communication channel. If LTE network is not available, the panel can switch to 3G WCDMA or 2G/GPRS data channel.
The LTE communicator is compatible with PowerMaster-10, 30, and 33 G2 control panels, installed with software version 18 and later.
Key features
- Compatible with PowerMaster panels working 868 MHz frequency, version 18.x and higher
- Can be configured as primary or backup reporting method
- Full event reporting
- Two-way voice communication
- OTA Firmware updates via PowerManage server
If you are matching this to an existing installation, work from the 9-103877 part number rather than the description.
Specifications
Technical information
Network & communication
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | JCI Visonic |
|---|---|
| Manufacturer Part Number | 9-103877 |
| Product Type | Cellular Communicator Module |
Technical information
| Cellular Generation | 4G LTE |
|---|---|
| Connectivity Technology | Wired |
Network & communication
| Communication Technology | Cellular |
|---|---|
| Maximum Operating Frequency | 2.60GHz |
| Minimum Operating Frequency | 433.00MHz |
Physical characteristics
| Depth | 20.60mm |
|---|---|
| Height | 50.00mm |
| Width | 59.00mm |
Power description
| Input Voltage | 3.4-4.2V DC |
|---|
Miscellaneous
| Compatibility | PowerMaster panels |
|---|
Attributes
| Compatibility | PowerMaster panels |
|---|---|
| Environmental status | Yes |
| Input Voltage | 3.4-4.2V DC |
