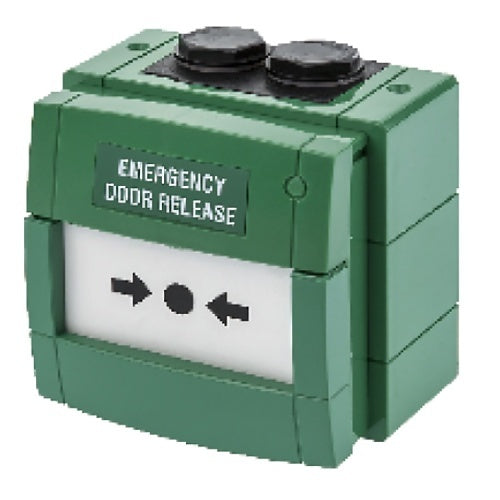

KAC by Honeywell W4A-G000SF-K013-12 release call point, Green
About this product
KAC by Honeywell W4A-G000SF-K013-12 is a release call point.
Resettable escape button. Activation by pressing the flexible polycarbonate element, not destroyed by use. Green housing.
Inscription 'EMERGENCY DOOR RELEASE' above the activation button. Dual contact with NO and NC operation - ideal for use in SSWiN systems. Reset key included.
IP67 - for outdoor or wet / dusty applications.
Key features
- Weatherproof Manual Call Point
- NO/NC Contacts (Rated at 30V DC)
- Supplied With Glass Element
If you are matching this to an existing installation, work from the W4A-G000SF-K013-12 part number rather than the description.
Specifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | KAC by Honeywell |
|---|---|
| Manufacturer Part Number | W4A-G000SF-K013-12 |
| Product Type | Double Pole |
Physical characteristics
| Colour | Green |
|---|---|
| Depth | 71.00mm |
| Durability | Weatherproof |
| Height | 97.50mm |
| Width | 84.00mm |
Power description
| Input Voltage | 30V DC |
|---|
Product information
| Contact Type | Closed Loop, Open Loop |
|---|---|
| Print/Message | Emergency Door Release |
Miscellaneous
| Features | Plug & Play, Surface Mount, Tamper Proof, Weather Proof |
|---|
Attributes
| Contact Type | Closed Loop, Open Loop |
|---|---|
| Input Voltage | 30V DC |
