Kidde KE-DBA-RECW base, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)

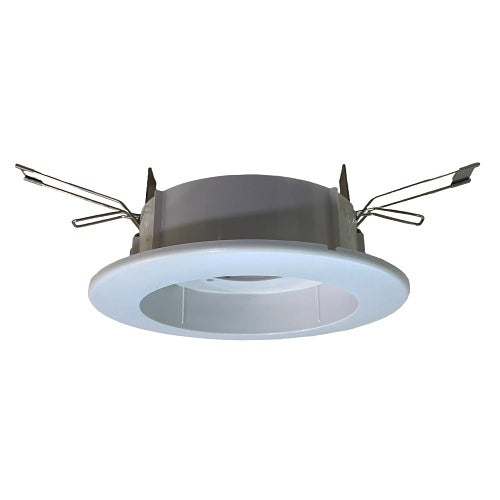

Kidde KE-DBA-RECW is a base.
The innovative Excellence range of intelligent addressable devices offers advanced for reliability and peace of mind. Coupled with for ease of installation and maintenance on new fire detection systems, it's a perfect match for exceptional overall performance. The KE-DBA-RECW is an Excellence series, recess mount base accessory.
It allows Excellence series detectors to be semi- recess mounted into ceiling tiles when installed into buildings with suspended ceilings. The detector's low profile is further reduced without any increased difficulty in wiring termination.For ease of installation, the base moulding passes through a clearance hole in the ceiling tile where it is automatically clamped between a retaining flange on the underside of the base moulding. The standard Excellence series detector base fit's snugly inside the fixture, completing the installation with the same feature set as for standard surface mount installation, including address tag mounting ability in two locations, head locking to avoid unauthorised detector removal, and device orientation for quick, easy and secure detector placement.
Key features
- Easy to install with standard tile clips avoids any drilling
- Enhances the detector low profile for aesthetically sensitive installations
- Supports standard Excellence series bases without any feature loss
- Integrated trim skirt covers any uneven hole sides
- Dual address tag locations avoids base alignment to make tags visible
Specifications
Certifications
Physical characteristics
Attributes
Specifications
| Brand Name | Kidde |
|---|---|
| Manufacturer Part Number | KE-DBA-RECW |
| Product Type | Base |
Certifications
| CE marking | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Height | 38.00mm |
| Weight | 110.00g |
Attributes
| Weight | 110.00g |
|---|
