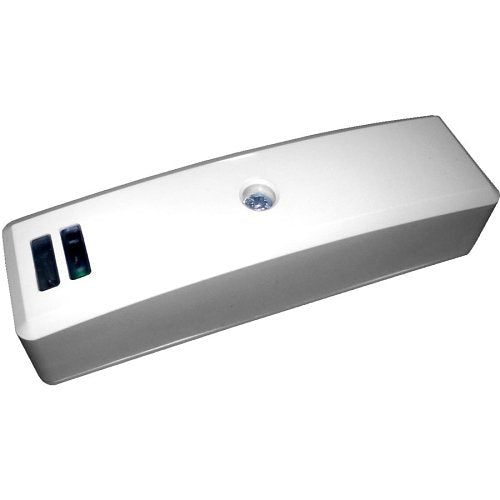

Knight Fire & Security SEISMO shock/tilt sensor, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Knight Fire & Security SEISMO is a shock/tilt sensor from the SEISMO range.
SEISMO is a shock/tilt sensor for use in Grade 2 installations. Operating at a standard nominal voltage of 12VDC, the following features are configurable on the PCB via shunt links: Detection mode (Shock, Tilt, Either, Both)
Pulse count (1, 2, 4, 6)
Comfort/heartbeat LED (on/off)
Shock/tilt LED feedback (on/off)
EOL resistors (1k, 2k2, 4k1, 4k7, 5k6)
Alarm resistors (1k, 2k2, 4k1, 4k7, 5k6, 6k8)
High sensitivity (on/off)
Tamper protection is provided by a breakaway PCB section that detects removal from the mounting surface. A sprung microswitch detects removal of the product lid. The sensitivity of the unit is fine-tuned with an onboard potentiometer.
Note: Due to restrictions in EN50131 regarding ancillaries with logic control and alarm status visibility – this sensor cannot be wired as part of a shared zone without compromising the security grade of the system. Comes complete with fitting screws and extra shunt links.
Key features
- Discrete Tilt & Vibration Detection
- Multi-Resistor
- LED Feedback
- Microswitch & Breakaway Tampers
- Made in UK
- Environmental Class II
- Pulse count selectable on board
- Pulse count selectable via serial link
- Vibration and surface / tilt detection selectable on board
- Motion sensing available on any movement along the vertical plane
If you are matching this to an existing installation, work from the SEISMO part number rather than the description.
-
Download
- SEISMO — Product Manual
Specifications
General information
Technical information
Certifications
Controls/indicators
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Knight Fire & Security |
|---|---|
| Manufacturer Part Number | SEISMO |
| Product Series | SEISMO |
| Product Type | Shock/Tilt Sensor |
General information
| Application/Usage | Surface Monitoring |
|---|
Technical information
| Connectivity Technology | Wired |
|---|
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
| CNBOP Certified | No |
| Energy Star | No |
| INCERT Certified | No |
| LPCB Certified | No |
| NF Certified | No |
| NF&A2P Certified | No |
| SBSC Certified | No |
| TIA Listed | No |
| VdS Certified | No |
| WEEE compliance | Compliant |
Controls/indicators
| Status Indicators | LED |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Material | Plastic |
Power description
| Input Voltage | 12V DC |
|---|---|
| Power Source | DC Power |
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Compatibility | Aritech, Cooper, DSC, Europlex, Guardall, HKC, Honeywell, Inner Range, RISCO, Siemens |
|---|---|
| Environmental certification | Environmental Class II (Indoor Uncontrolled) |
| Indoor or outdoor use | Indoor |
Attributes
| Compatibility | Aritech, Cooper, DSC, Europlex, Guardall, HKC, Honeywell, Inner Range, RISCO, Siemens |
|---|---|
| Input Voltage | 12V DC |
| Power Source | DC Power |
