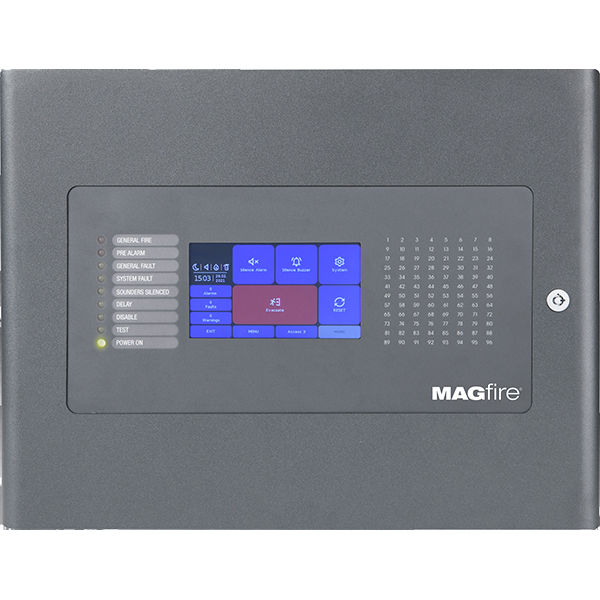

MAG MAGPRO9601 MAGPRO Addressable 96 Zone Fire Alarm Panel Grey
Free Delivery
£
1,002
99
(Incl. VAT)
3 Years Warranty
MAGPRO Addressable 96 Zone Fire Alarm Panel Grey
About this product
About this product
The MAG MAGPRO9601 is a MAGPRO Addressable 96 Zone Fire Alarm Panel Grey.
Key Features
- Programmable Output: Up to 250 Soft, Outputs per CIE
- Materials: Metal, powder-coated
- Genuine MAG fire alarm panel supplied by WME
- Backed by WME UK stock and trade support
- Free UK delivery on orders over £129
-
Download
- MAGPRO9601 Tech Sheet
£
1,002
99
Price
Technical Details
Specifications
Dimensions (mm)
430 x 330 x 120
Materials
Metal, powder-coated
Maximum Number of Events in Log
10000
Connection for Firmware Update(s)
Micro USB
LED Indication for Zone Circuits
96 Zone LEDs
System Status Indication
10 LEDs
Weight (Kg)
6 (Without Battery)
Warranty (Years)
3
Supply Voltage (V AC)
230
Frequency (Hz)
50/60
Fuses
Main Power Supply: T Type 2A
Loop Voltage (V DC)
24
Maximum Cable Size (mm²)
1.0 to 2.5
Standby Supply
1 x 12V SLA Battery - Up to 18Ah - Ø5mm (M5) (sold separately)
Current Consumption (A)
2.7
Wiring Type
Addressable
Programmable Inputs
Up to 250 Soft, Inputs per CIE
Loops
1 (expandable up to 4)(MAGPRO96-L250 required)
Maximum Devices Per Loop
250 (subject to loop calculation)
Maximum Number of Devices (Per CIE)
1000
Number of Zone Groups
48
Programmable Output
Up to 250 Soft, Outputs per CIE
Auxiliary Output
24V DC @ 0.3A
Monitored Outputs
4 (NO, COM)
Monitored Output Ratings
SND (Conventional sounder circuit): 24V DC @ 0.5A
Unmonitored Outputs
4 Programmable Relays: NO, COM, NC
Unmonitored Output Ratings
24V DC @ 15A (each)
Protocol Type
Custom (Closed)
Display
5" 800 x 480 TFT Touchscreen
Clock
Real time
User Interaction
Touchscreen GUI
Day/Night
Comprehensive day/night mode facility
Operating Temperature (°C)
-5 to +40
Storage Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
95
Compatible Products
MAGfire range of MAGPRO addressable devices
Additional Information
RS232 Interface for Thermal printer
GTIN
5060654468347
Commodity Code
8531103000
Dimensions
Dimensions (mm)
430 x 330 x 120
Specifications
| Dimensions (mm) | 430 x 330 x 120 |
|---|---|
| Materials | Metal, powder-coated |
| Maximum Number of Events in Log | 10000 |
| Connection for Firmware Update(s) | Micro USB |
| LED Indication for Zone Circuits | 96 Zone LEDs |
| System Status Indication | 10 LEDs |
| Weight (Kg) | 6 (Without Battery) |
| Warranty (Years) | 3 |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50/60 |
| Fuses | Main Power Supply: T Type 2A |
| Loop Voltage (V DC) | 24 |
| Maximum Cable Size (mm²) | 1.0 to 2.5 |
| Standby Supply | 1 x 12V SLA Battery - Up to 18Ah - Ø5mm (M5) (sold separately) |
| Current Consumption (A) | 2.7 |
| Wiring Type | Addressable |
| Programmable Inputs | Up to 250 Soft, Inputs per CIE |
| Loops | 1 (expandable up to 4)(MAGPRO96-L250 required) |
| Maximum Devices Per Loop | 250 (subject to loop calculation) |
| Maximum Number of Devices (Per CIE) | 1000 |
| Number of Zone Groups | 48 |
| Programmable Output | Up to 250 Soft, Outputs per CIE |
| Auxiliary Output | 24V DC @ 0.3A |
| Monitored Outputs | 4 (NO, COM) |
| Monitored Output Ratings | SND (Conventional sounder circuit): 24V DC @ 0.5A |
| Unmonitored Outputs | 4 Programmable Relays: NO, COM, NC |
| Unmonitored Output Ratings | 24V DC @ 15A (each) |
| Protocol Type | Custom (Closed) |
| Display | 5" 800 x 480 TFT Touchscreen |
| Clock | Real time |
| User Interaction | Touchscreen GUI |
| Day/Night | Comprehensive day/night mode facility |
| Operating Temperature (°C) | -5 to +40 |
| Storage Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 95 |
| Compatible Products | MAGfire range of MAGPRO addressable devices |
| Additional Information | RS232 Interface for Thermal printer |
| GTIN | 5060654468347 |
| Commodity Code | 8531103000 |
Dimensions
| Dimensions (mm) | 430 x 330 x 120 |
|---|
