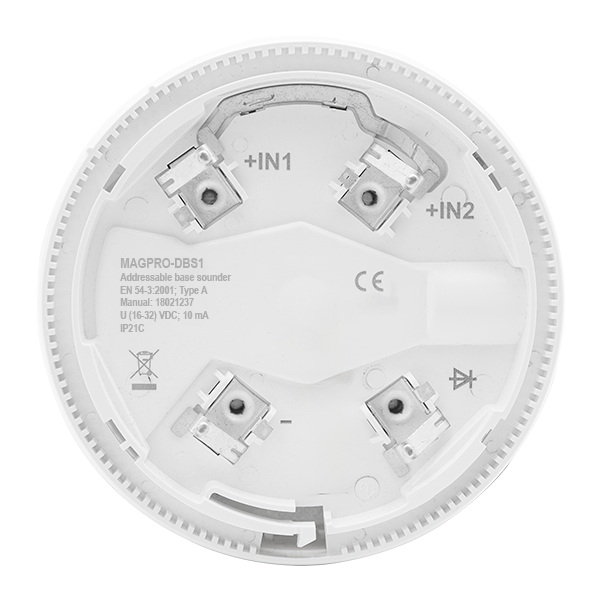

MAG MAGPRO-DBS1 Addressable Fire Sounder Deep Base White
£
37
85
(Incl. VAT)
3 Years Warranty
Addressable Fire Sounder Deep Base White
About this product
About this product
The MAG MAGPRO-DBS1 is an Addressable Fire Sounder Deep Base White. Featuring addressable operation and a white finish, it is built for dependable professional installation.
Key Features
- Requires MAGPRO-DB or MAGPRO-DB23W bases for installation
- Compatible with MAGPRO-SD1, MAGPRO-HD1 & MAGPRO-CSD1
- Addressable operation
- A white finish
- Genuine ESP sounder deep base supplied by WME
-
Download
- MAGPRO-DBS1 Tech Sheet
£
37
85
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø105 x 22
Materials
Housing: ABS
Volume Modes
2 (Low & High)
Number of Available Tones
32
Weight (Kg)
0.12
Warranty (Years)
3
Operating Voltage (V DC)
16 - 32
Maximum Consumption at Communication (μA)
470
Wiring Type
Analogue Addressable (MAGPRO)
Sound Output @ 1m (Low) (db)
81
Sound Output @ 1m (High) (db)
88
Protocol Type
Custom (Closed)
Ingress Protection
IP21C (with mounted detector)
Operating Temperature (°C)
-10 to +55
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
MAGPRO series of CIEs
Dimensions
Dimensions (mm)
ø105 x 22
Specifications
| Dimensions (mm) | ø105 x 22 |
|---|---|
| Materials | Housing: ABS |
| Volume Modes | 2 (Low & High) |
| Number of Available Tones | 32 |
| Weight (Kg) | 0.12 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 16 - 32 |
| Maximum Consumption at Communication (μA) | 470 |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Sound Output @ 1m (Low) (db) | 81 |
| Sound Output @ 1m (High) (db) | 88 |
| Protocol Type | Custom (Closed) |
| Ingress Protection | IP21C (with mounted detector) |
| Operating Temperature (°C) | -10 to +55 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | MAGPRO series of CIEs |
Dimensions
| Dimensions (mm) | ø105 x 22 |
|---|
Addressable Fire Sounder Deep Base White features
MAG MAGPRO-DBS1 Addressable Fire Sounder Deep Base White
