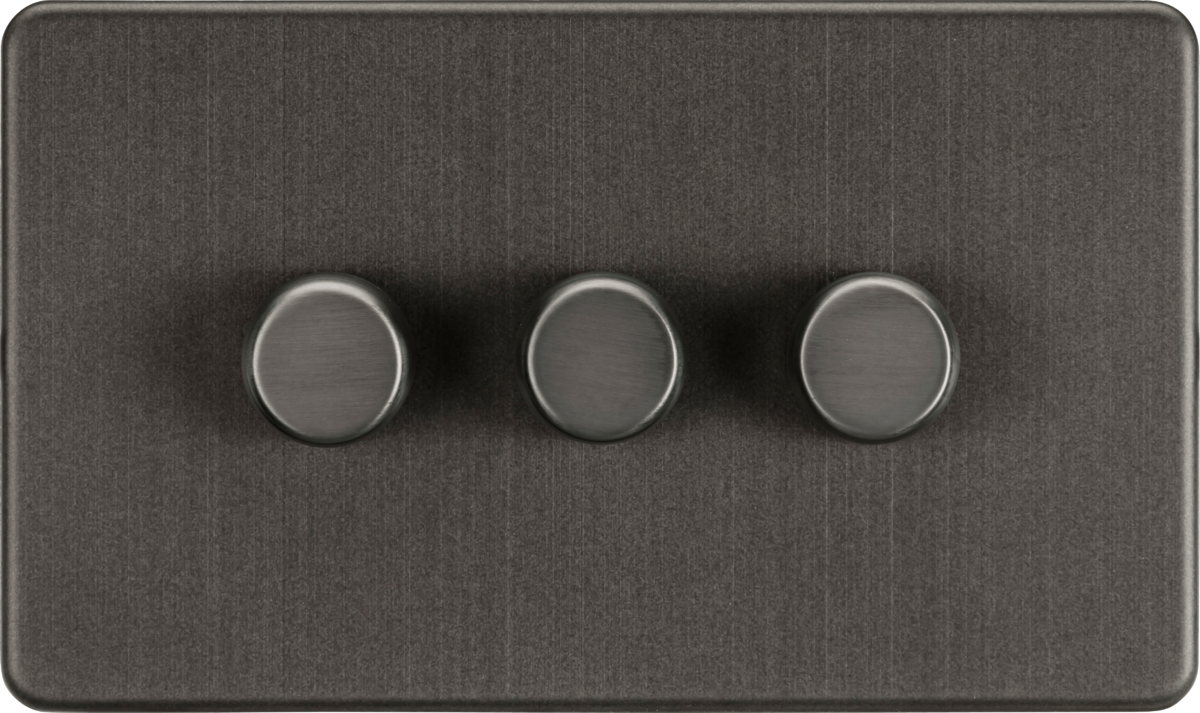

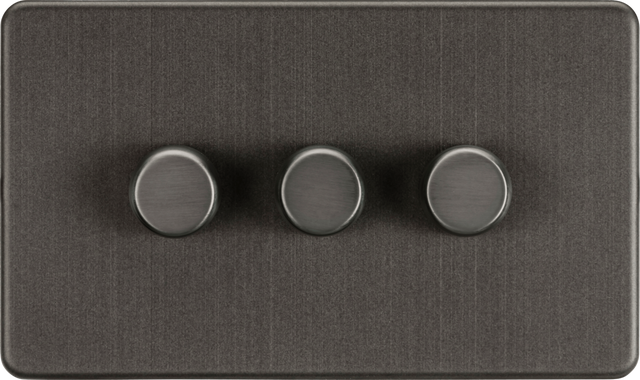

Knightsbridge: SF2193SB, 3G 2-Way Intelligent Dimmer Switch, 10-200W, Smoked Bronze, Rotary Control, 230V
About this product
Perfect finishing touch to any modern home, this dimmer offers a flawless screwless low profile metal design with matching dimmer caps.
Key Features:- Switch between Trailing-edge and Leading-edge modes for a highly compatible dimmer solution.
- Trim, switch modes, and reset dimmer all from the front of the plate via the control knob.
- Push On/Off, rotary dimming action.
- Preset in Trailing-edge mode.
- Compatible with dimmable lamps only.
- Includes overload and overheat protection.
- Fitted with an Inrush Current Limiter (ICL).
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Smoked Bronze |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

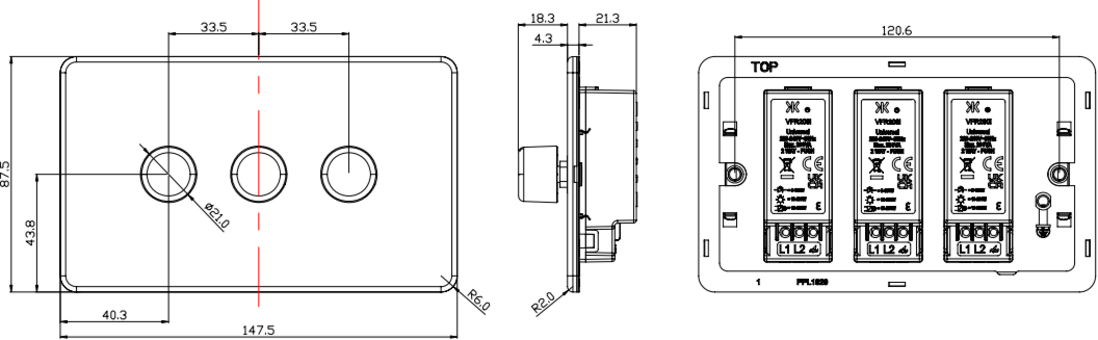

Dimensions
| Depth | 43.9 mm |
|---|---|
| Width | 147.5 mm |
| Height | 87.5 mm |
| Projection | 22.6 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 21.3 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
Intelligent Dimmer, Smoked Bronze, 200W features
