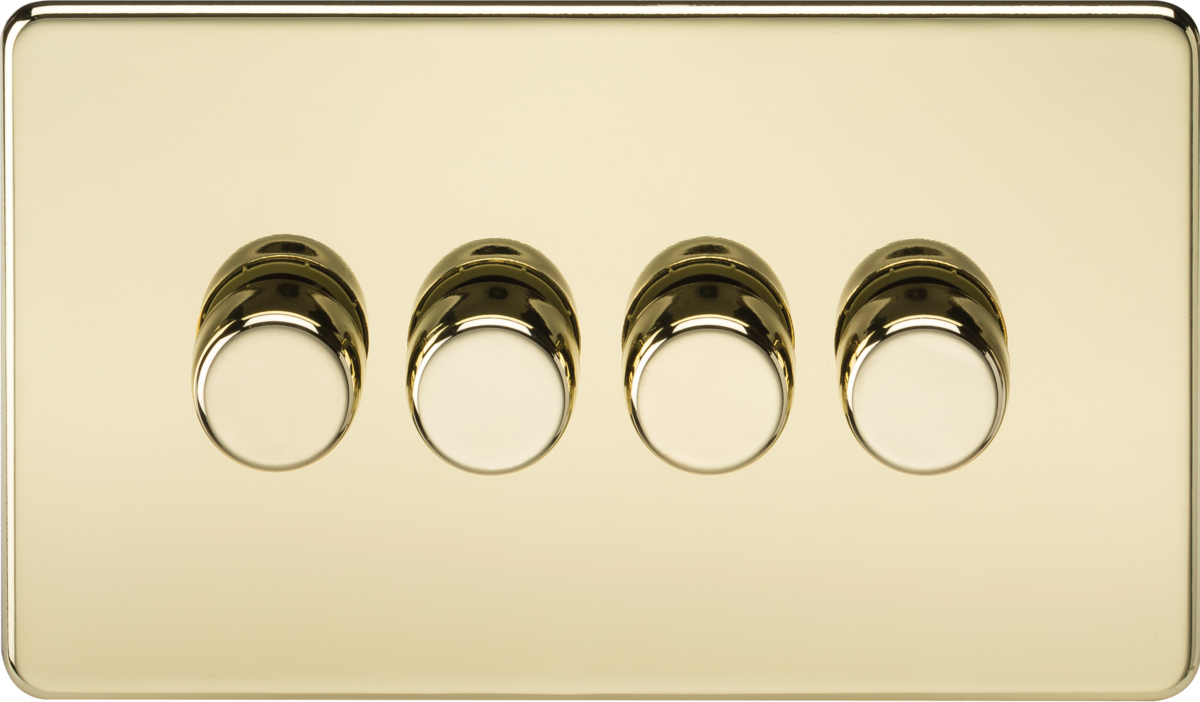

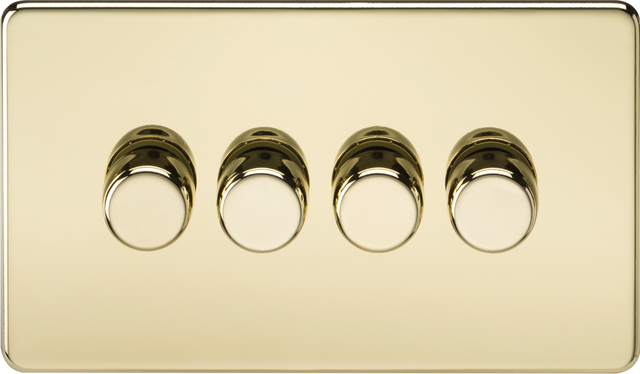

Knightsbridge: SF2194PB, 4G Intelligent Dimmer Switch, 2 Way, Polished Brass, 10-200W (5-150W LED)
About this product
The ML Accessories Intelligent Dimmer is the perfect finishing touch to any modern home. Its polished brass finish along with a flawless screwless low profile highlights the aesthetic appeal.
- Compatible with Dimmable Lamps Only
- Switch between Trailing-edge and Leading-edge modes for compatibility
- Push On/Off with rotary dimming action
- Features overload and overheat protection
- Designed to trim, switch modes and reset easily from the control knob
- 10-200W (5-150W LED) capacity
- Please note: Do not use in a mixed environment with different brands or wattages of lamps in the same fitting.
Compliance: CE, UKCA certified.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Polished Brass |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

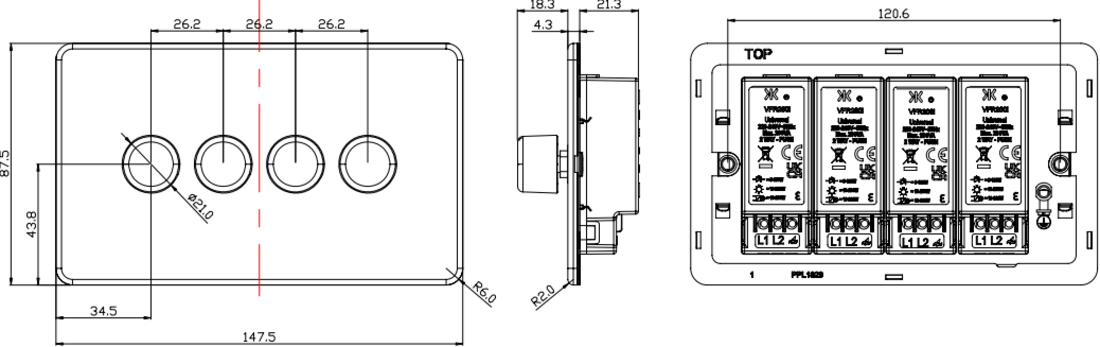

Dimensions
| Depth | 43.9 mm |
|---|---|
| Width | 147.5 mm |
| Height | 87.5 mm |
| Projection | 22.6 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 21.3 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
4G 2-Way Intelligent Dimmer - Polished Brass features
Knightsbridge: SF2194PB, 4G Intelligent Dimmer Switch, 2 Way, Polished Brass, 10-200W (5-150W LED)
