Nortech CRC220-48-ENC-4 access controller
About this product
Please note: this is a non-returnable item (excluding faulty goods)

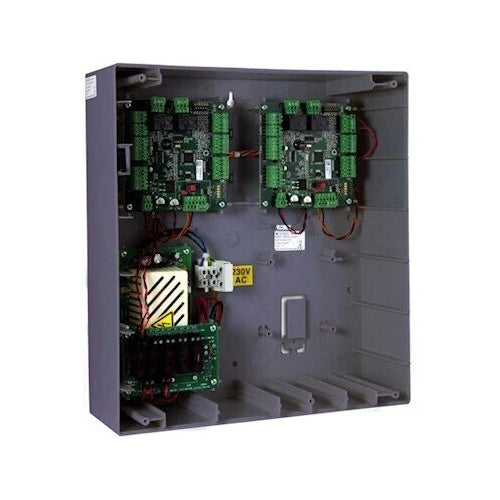

Nortech CRC220-48-ENC-4 is an access controller.
4-door read in/free exit RS485 access controller with 3A 12V PSU in plastic enclosure.
Key features
- Controls up to 4 doors or barriers
- Integral PSU provides reliable power management
- Compatible with Wiegand and Clock & Data readers
- Buddy Mode' option (any 2 valid cards required for access)
- Supports both Wiegand and Clock and Data formats
- Door monitor input and door alarm output for each door
- Card capture/auxiliary output for each reader
- Free exit input for each door
- Tamper switch input and tamper alarm output
- Fire alarm input for unlocking all doors in an emergency
If you are matching this to an existing installation, work from the CRC220-48-ENC-4 part number rather than the description.
Specifications
Certifications
Environmental conditions
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Nortech |
|---|---|
| Manufacturer Part Number | CRC220-48-ENC-4 |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Environmental conditions
| Operating Temperature (T-T) | 0-40°C |
|---|---|
| Storage Temperature (T-T) | -20-70°C |
Physical characteristics
| Depth | 135.00mm |
|---|---|
| Height | 325.00mm |
| Width | 300.00mm |
Power description
| Input Voltage | 12V DC, 240V AC, 5V DC |
|---|
Attributes
| Input Voltage | 12V DC, 240V AC, 5V DC |
|---|
