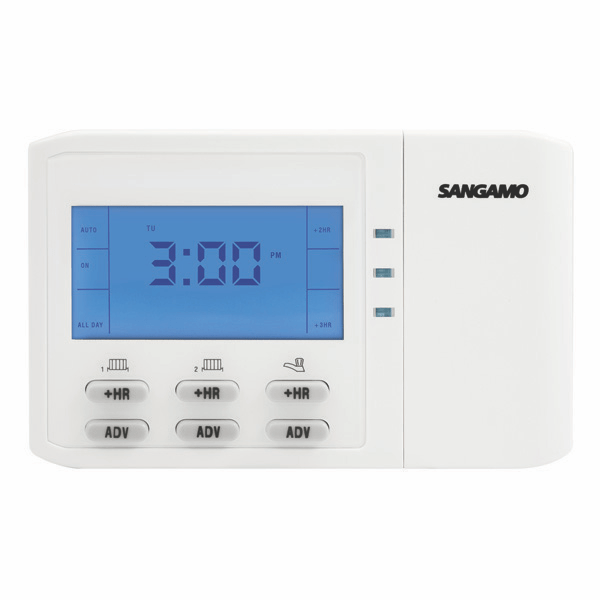

Sangamo Choice CHOICE PR3N 3 Channel Programmer
About this product
The Sangamo Choice CHOICE PR3N is a 3 Channel Programmer.
Key Features
- Genuine ESP central heating programmer supplied by WME
- Backed by WME UK stock and trade support
- Free UK delivery on orders over £129
In Detail
Precise time and temperature control cuts energy waste and keeps spaces comfortable, and this central heating programmer gives installers a dependable, easy-to-set solution for domestic and light-commercial heating.
Straightforward wiring and intuitive programming keep installation and handover quick, while robust construction supports years of reliable service.
The Sangamo Choice CHOICE PR3N is a practical choice wherever a reliable central heating programmer is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | Sangamo Choice |
| Product code | CHOICE PR3N |
| Dimensions (mm) | 140 x 87 x 37 |
| Number of Outputs | 3 |
| Display | Backlit LCD |
| Relay/Contact Type | 1B, Micro-Disconnection |
| Clock | 12 hour am/pm, 1 minute resolution |
| Relay Voltage - Maximum (AC) | 230 |
| Timing Accuracy | ±1.5 Second / Day |
| Relay Resistive Load Rating (A) | 2 |
| Materials | Thermoplastics, Flame Retardant |
| Relay Inductive Load Rating (A) | 1 |
| Mounting | Surface Only |
| Load Rating Comment | Per Channel |
| Heating System | Pumped Only |
| Type | Switched Live |
| Warranty (Years) | 3 |
| Schedule | 24 Hour, 5/2 Day and 7 Day |
| Available Operations | 2 or 3 ON/OFF Periods |
| Modes Available | On, Off, Auto, All Day |
| Summer/Winter Time Change | Yes (Automatic) |
| Programme Resolution (Mins) | 10 |
| Selectable Boost Durations | 1,2 or 3 Hour Boost |
| Supply Voltage (V AC) | 100 - 240 |
| Wiring Type | Fixed wiring only |
| Global Selections | Normally Open & Normally Closed |
| Battery Type | Lithium Cell CR2032 |
| IEC Protection Class | Class II |
| Operating Temperature (°C) | 0 to +40 |
| Additional Information | Double Insulated Construction |
| BACKLIT | 3 |
| Weight | 0.325 kg |
| GTIN | 5026961007341 |
| Commodity Code | 9032890090 |
