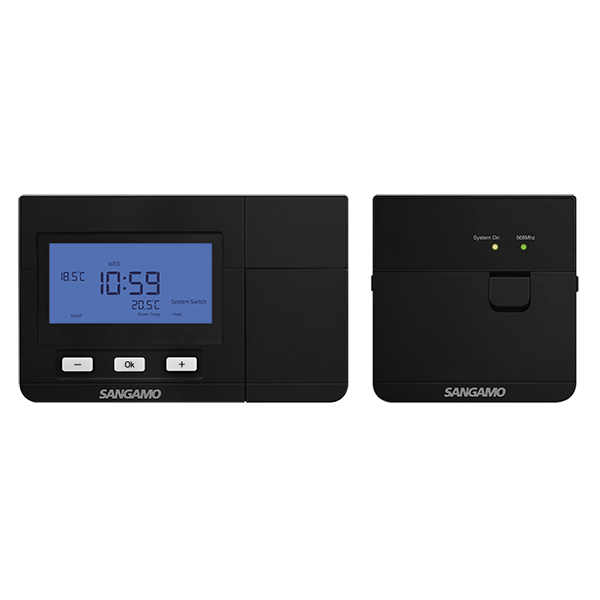

Sangamo Choice CHPRSTATDPRFB Wireless Digital Programmable Thermostat in Black
About this product
The Sangamo Choice CHPRSTATDPRFB is a Wireless Digital Programmable Thermostat in Black. Featuring a black finish and Wireless connectivity, it is built for dependable professional installation.
Key Features
- Wireless Communication Between Thermostat and Receiver
- 24 or 7 Day Programmable
- 6 Time/Temperature Events per Day
- Pre- Programmed Schedule Ready for Use
- A black finish
In Detail
Precise time and temperature control cuts energy waste and keeps spaces comfortable, and this room thermostat gives installers a dependable, easy-to-set solution for domestic and light-commercial heating.
Straightforward wiring and intuitive programming keep installation and handover quick, while robust construction supports years of reliable service.
The Sangamo Choice CHPRSTATDPRFB is a practical choice wherever a reliable room thermostat is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | Sangamo Choice |
| Product code | CHPRSTATDPRFB |
| Dimensions (mm) | 88 x 88 x 39.4 |
| Colour | Black |
| Materials | ABS |
| Mounting | Surface or Free Standing |
| Sensor Type | Electronic Sensor for Accurate and Responsive |
| Flush Mounting Back Box Depth (mm) | 25 |
| Supply Voltage (V AC) | 230 |
| Battery Low Indicator | Yes |
| Frequency (Hz) | 50 |
| EE Class | ErP Class IV |
| Connection Type | Radio Frequency |
| Class Description | TPI Room Thermostat, for use with ON/OFF |
| Transmission Frequency (MHz) | 868 |
| Adjustment Type | Digital Programming with Digital |
| Relay Rating | 16A Contact Rating (Volt Free) |
| Schedule | 24 Hour or 7 Days |
| Set Temperature Range (°C) | 5 to 35 |
| Temperature Display Range (°C) | 0 to 50 |
| Operating Temperature (°C) | 0 to +50 |
| Temperature Swing Adjustment (°C) | 0.5 and 1 |
| Optimisation | Optimum Start/ Delay Start and |
| Modes Available | 3 (Permanent, Timed, and Temporary |
| Pre-Programmed Schedule | Yes |
| Summer/Winter Time Change | Yes (Automatic) |
| Wireless Range - Open Field (m) | 80 |
| Wireless Range - Indoor (m) | 30 |
| Frost Protection | Yes (5°C) |
| Warranty Years | 3 |
| Weight | 0.57 kg |
| GTIN | 5060654464172 |
| Commodity Code | 9032890090 |
