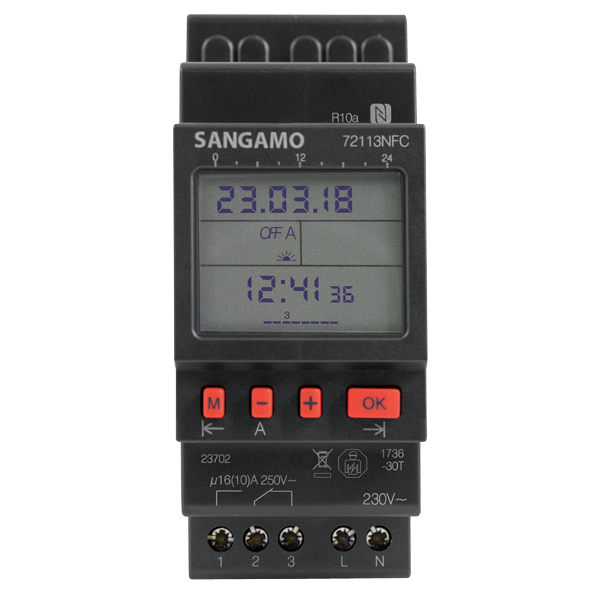

Sangamo 72113NFC NFC 2 Module 1 Channel, 7 Day Timer, 56 Operations
£
100
27
(Incl. VAT)
NFC 2 Module 1 Channel, 7 Day Timer, 56 Operations
About this product
About this product
The Sangamo 72113NFC is an NFC 2 Module 1 Channel, 7 Day Timer, 56 Operations. Featuring 1 channel recording, it is built for dependable professional installation.
Key Features
- Simple programming
- Optional data key for copying settings between time switches
- 1 channel recording
- Genuine ESP time switch supplied by WME
- Backed by WME UK stock and trade support
-
Download
- 72113NFC Tech Sheet
£
100
27
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
90 x 36 x 63
Number of Outputs
1
Display
LCD Display
Relay/Contact Type
SPDT
Time Base
Quartz Crystal
Relay Voltage - Maximum (AC)
230
Quartz Crystal Accuracy (at 20°C)
≤ ± 0.5 Seconds / Day
Maximum LED Lamp Load Rating (W)
200 @ 230V
Materials
Self-Extinguishing Thermoplastic
Contact Material
AgSnO²
Mounting
Surface Mounting or DIN
Maximum Inductive Current Rating (A)
10 @ 0.6pf
Module Size
2
Maximum Incandescent, Halogen Lamp
2000
Maximum Compact Fluorescent Lamp
200
Schedule
24 Hour, and 7 Day Programmable
Maximum Fluorescent Lamp
1000
Switching Modes
ON, OFF, Pulse, Extra, Permanent
Summer/Winter Time Change
Yes (Automatic)
Holiday Mode
Ye
Program Security
Unlimited (E2-PROM)
Minimum Switching power (mW)
1000 (10V/10mA)
Pulse length - Timer (man. switching)
0:00:01 up to 9:59:59 h:mm:ss
Supply Voltage (V AC)
230
Power Consumption (W)
0.2-1
Cable Size (mm²)
0.5 - 2.5
Power Reserve
10 Years (Approx.)
Battery Type
Replaceable CR2032
IEC Protection Class
Class II When Installed According to
Operating Temperature (°C)
-30 to +55
Volt-Free 16A Changeover Contact
143602: Module Enclosure
Dimensions
Dimensions (mm)
90 x 36 x 63
Specifications
| Dimensions (mm) | 90 x 36 x 63 |
|---|---|
| Number of Outputs | 1 |
| Display | LCD Display |
| Relay/Contact Type | SPDT |
| Time Base | Quartz Crystal |
| Relay Voltage - Maximum (AC) | 230 |
| Quartz Crystal Accuracy (at 20°C) | ≤ ± 0.5 Seconds / Day |
| Maximum LED Lamp Load Rating (W) | 200 @ 230V |
| Materials | Self-Extinguishing Thermoplastic |
| Contact Material | AgSnO² |
| Mounting | Surface Mounting or DIN |
| Maximum Inductive Current Rating (A) | 10 @ 0.6pf |
| Module Size | 2 |
| Maximum Incandescent, Halogen Lamp | 2000 |
| Maximum Compact Fluorescent Lamp | 200 |
| Schedule | 24 Hour, and 7 Day Programmable |
| Maximum Fluorescent Lamp | 1000 |
| Switching Modes | ON, OFF, Pulse, Extra, Permanent |
| Summer/Winter Time Change | Yes (Automatic) |
| Holiday Mode | Ye |
| Program Security | Unlimited (E2-PROM) |
| Minimum Switching power (mW) | 1000 (10V/10mA) |
| Pulse length - Timer (man. switching) | 0:00:01 up to 9:59:59 h:mm:ss |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.2-1 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Power Reserve | 10 Years (Approx.) |
| Battery Type | Replaceable CR2032 |
| IEC Protection Class | Class II When Installed According to |
| Operating Temperature (°C) | -30 to +55 |
| Volt-Free 16A Changeover Contact | 143602: Module Enclosure |
Dimensions
| Dimensions (mm) | 90 x 36 x 63 |
|---|
