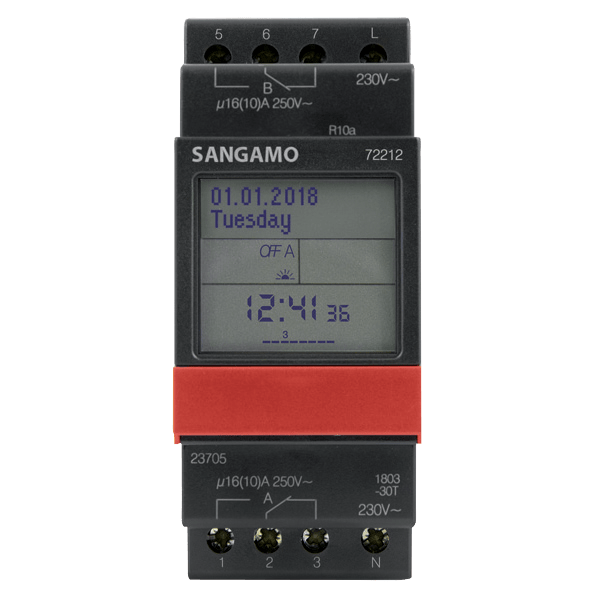

Sangamo 72212 2 Module, 2 Channel, 7 Day, 46 Operations
About this product
The Sangamo 72212 is a 2 Module, 2 Channel, 7 Day, 46 Operations. Featuring 2 channel recording, it is built for dependable professional installation.
Key Features
- Simple programming
- Optional data key for copying settings between time switches
- 2 channel recording
- Genuine ESP time switch supplied by WME
- Backed by WME UK stock and trade support
In Detail
Precise time and temperature control cuts energy waste and keeps spaces comfortable, and this time switch gives installers a dependable, easy-to-set solution for domestic and light-commercial heating.
Straightforward wiring and intuitive programming keep installation and handover quick, while robust construction supports years of reliable service.
The Sangamo 72212 is a practical choice wherever a reliable time switch is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | Sangamo |
| Product code | 72212 |
| Dimensions (mm) | 90 x 36 x 63 |
| Number of Outputs | 2 |
| Display | LCD Display |
| Relay/Contact Type | SPDT |
| Time Base | Quartz Crystal |
| Relay Voltage - Maximum (AC) | 230 |
| Quartz Crystal Accuracy (at 20°C) | ≤ ± 0.5 Seconds / Day |
| Maximum LED Lamp Load Rating (W) | 300 @ 230V |
| Materials | Self-Extinguishing Thermoplastic |
| Contact Material | AgSnO² |
| Mounting | Surface Mounting or DIN |
| Maximum Incandescent, Halogen Lamp | 1000 |
| Module Size | 2 |
| Maximum Compact Fluorescent Lamp | 300 |
| Maximum Starting Current (A) | 30 |
| Available Operations | 46 Operations |
| Minimum Switching power (mW) | 500 (10V/10mA) |
| Switching Modes | ON, OFF, Pulse |
| Minimum Interval (Mins) | 1 |
| Summer/Winter Time Change | Yes (Automatic) |
| Program Security | Unlimited (E2-PROM) |
| Pulse length - Timer (man. switching) | 0:00:01 up to 9:59:59 h:mm:ss |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.2-1 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Power Reserve | 10 Years (Approx.) |
| Battery Type | Replaceable CR2032 |
| IEC Protection Class | Class II When Installed According to |
| Operating Temperature (°C) | -30 to +55 |
| Weight | 0.18 kg |
| GTIN | 4022709237057 |
| Commodity Code | 9107000090 |
