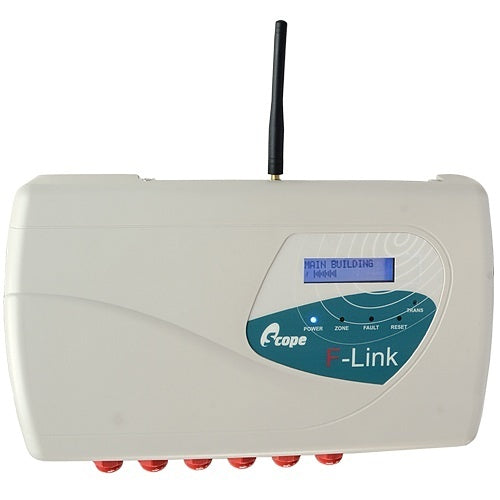

Scope FLINK4 monitored telemetry transceiver

Please note: this is a non-returnable item (excluding faulty goods)

Scope FLINK4 is a monitored telemetry transceiver from the F-Link range.

Scope F-Link (Fire panel link) mesh network system has become the de facto and secure way of wirelessly linking for alerting and monitoring fire or security systems located in adjacent buildings, the range can cover up to a mile, depending on the environment and aerials. Practical, fast, and flexible installation. F-Link is housed in a large case with plenty of cable entry points and an informative text display that provides status information and gives details of all alarm messages.

Plug & play installation includes a “press to join network” feature and auto-reconfiguration if a unit needs to be replaced or moved. A system consists of two or more F-Link units working together to form a mesh network with each unit operating as both a transmitter and receiver. The radio link between units is monitored for faults in accordance with the relevant sections of BS5839-1:2017 (24.2b) and BSEN54-25:2008 (4.2.6).

There is an additional RS232 serial output on the Master unit for connection to either or both the FLINK XP relay expansion unit for individual relay output per F-Link for fire and fault and an optional FLINK paging transmitter, which sends alarm and fault messages to pocket pagers. The front panel display indicates active zones, unit status, network/radio status and the received signal strength of incoming transmissions. A button is provided to mute the internal fault sounder, a key switch allows the unit to be reset or placed into test mode.

The Identity and radio operating frequency of each unit is set using dip switches, allowing for rapid and fuss-free installation. Where required, additional features can be programmed using Windows-based configuration software (available from Scope). Software-configurable options include Text descriptors for each Node and each zone event; zone input type; and output relay operating mode.

Programmed settings are transmitted by the Master unit to all installed Nodes. An optional F-Link paging transmitter can be added to the system to send alarm and fault event descriptions to portable radio pagers. An optional interface can also be specified to provide a serial data output for logging purposes.

Key features

• Digi-Mesh network signalling technology
• Up to 16 F-Link units can be networked in 1 network, But further networks can be achieved on differing frequencies
• Fully supervised with high immunity
• Self-healing for quick and easy unit replacement
• Informative LCD text display
• DIP switch configuration, no bespoke factory programming necessary
• Link monitoring in accordance with the relevant sections of BS5839-1:2017 (24.2b) and BSEN54-25:2008 (4.2.6)

If you are matching this to an existing installation, work from the FLINK4 part number rather than the description.
