Scope PT10PROG pagetek programming kit, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Scope PT10PROG is a pagetek programming kit from the DigiLink3, PageTek4 range.
The forerunner of PageTek 2, the Scope PageTek SCPUHF (non-programmable), will also continue to be manufactured to support simple applications and existing customer systems. Scope PageTek 3 paging transmitters are available with either 5 or 10 programmable zone inputs which, when triggered, will automatically send the active zone message to portable or fixed pagers. This message can be repeated at predetermined intervals and a secondary message can be sent when the zone returns to its inactive state if required.
Multiple transmitters can be deployed at various locations all signalling to the same pager/pager groups. The units are also available labelled ‘DigiLink’ for telemetry operation to fixed receivers. Regular ‘In Service’ calls can be automatically sent to the receiving devices which can indicate ‘No Service’ on the pagers, or trigger a ‘fault’ zone on fixed receivers if the calls are not received.
This gives the end-user confidence that the system is operating properly. The 10 zone version also has a special ‘Burglar Alarm’ mode with configurable entry/exit delay, transit zones and entry zone. For advanced users who wish to programme the unit themselves, a Programming Kit can be purchased.

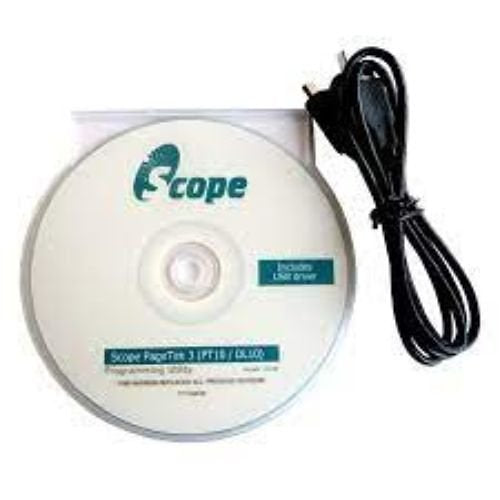

This consists of Windows-based application software and a USB cable for PC. This allows all functions to be programmed and stored in the system in secure non-volatile memory. 12VDC, 24VDC and mains powered versions are available, with an optional battery back-up facility for the mains version.
Key features
- Allows the user to alter the predefined transmission messages & address's
- Allows the programmer to select the man down & fall detect settings to suit requirements
- Allows the programmer to enable man down and fall detect settings
- Allows the programmer to change frequency of transmission
- Transmission repeat functions
- Local output (open collector)
- Identity code (capcode) for each zone and each state.
- Preformed text messages, either numeric or alphanumeric.
- Low Battery Signal
- ’In Service’ call period
If you are matching this to an existing installation, work from the PT10PROG part number rather than the description.
Specifications
Certifications
Physical characteristics
Specifications
| Brand Name | Scope |
|---|---|
| Manufacturer Part Number | PT10PROG |
| Product Series | DigiLink3, PageTek4 |
| Product Type | Software |
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
Physical characteristics
| Colour | Silver |
|---|
