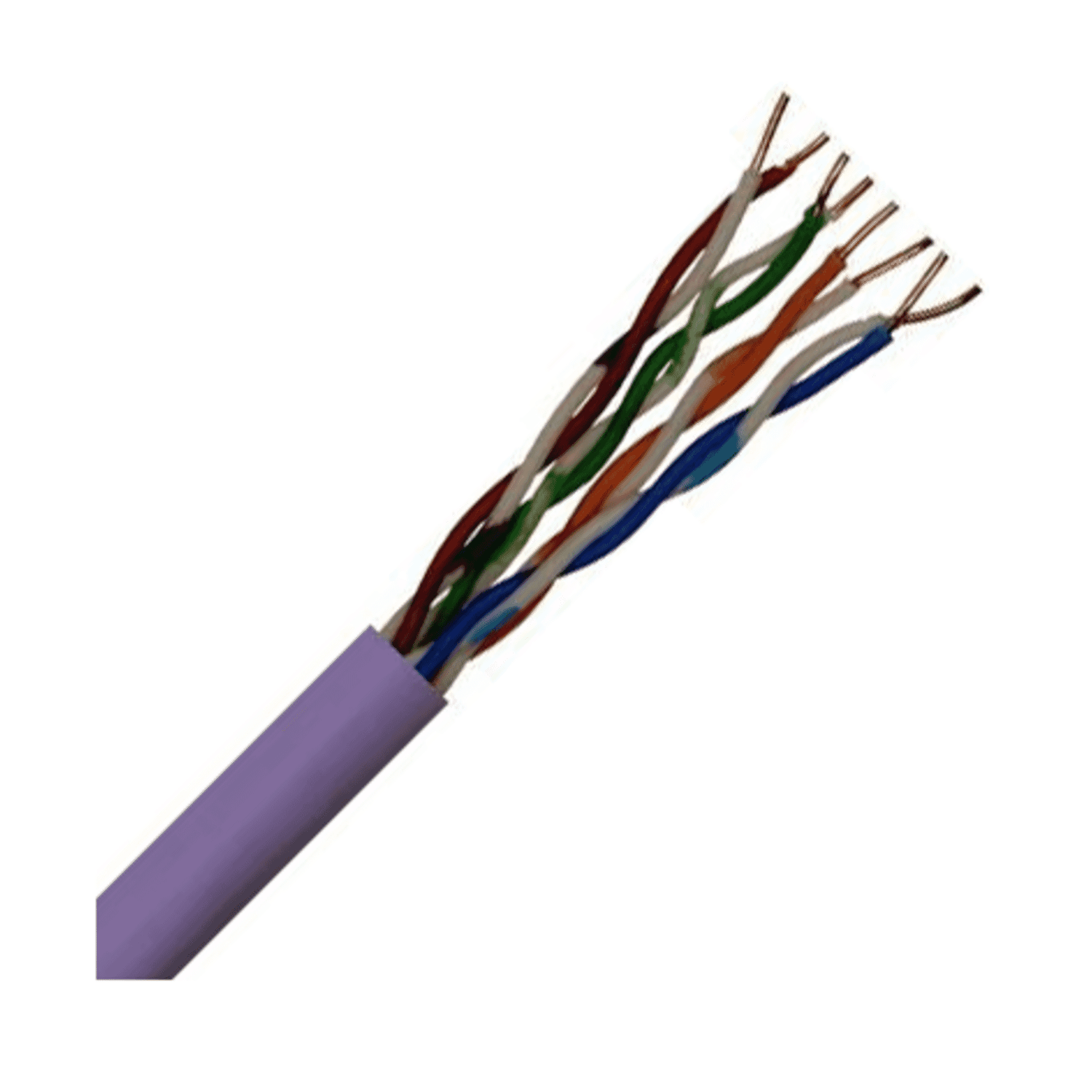

Introduction to the SFX Cat6 UTP LSZH Cable (SFX/C6-UTP-LSZH-PUR-305)
The SFX Cat6 UTP LSZH Cable, supplied as a 305 m easy-pull reel and finished in distinctive purple (RAL 4005), is designed for modern structured cabling projects that demand reliable Gigabit performance, safety-minded materials and installer-friendly packaging. Marketed under the part code SFX/C6-UTP-LSZH-PUR-305, this cable supports frequencies up to 250 MHz and is HDBaseT-certified, making it a practical choice for both data networks and certain AV links. Its low-smoke zero-halogen (LSZH) jacket, solid bare copper conductors and easy-pull reel format combine to deliver a balance of performance, safety and convenience for commercial, educational and institutional installations.
Key Features at a Glance
- Category:Cat6 UTP, 4-pair — specified for Gigabit Ethernet (1 Gbps) up to the standard 90 m channel length.
- Bandwidth:Up to 250 MHz for reliable high-speed data transmission.
- Construction:Solid bare copper conductors with HDPE insulation and colour-coded pairs for straightforward termination.
- Safety jacket:LSZH outer sheath (CPR class Eca) for reduced smoke and toxic emissions in case of fire.
- Format:305 m easy-pull reel/box — minimises waste and speeds up installation.
- Colour:Purple (RAL 4005) for clear visual identification in multi-cable installations.
- Certifications:HDBaseT-certified and suitable for PoE-aware networks when installed per guidelines.
Detailed Specifications and Benefits
The SFX Cat6 cable is engineered to meet Category 6 performance expectations. With a rated bandwidth up to 250 MHz and support for Gigabit Ethernet up to 90 m, it handles contemporary office and AV network demands. While detailed attenuation and crosstalk tables should be referenced from the official datasheet for design-critical projects, this product’s HDBaseT certification indicates it meets the signal integrity expectations required for AV-over-Cat6 links within standard channel lengths.
The cable uses solid bare copper conductors (approximately 0.53 mm diameter) and HDPE pair insulation (approx. 0.18 mm). The overall diameter of roughly 6.10 mm with a 0.55 mm LSZH jacket gives a robust feel while remaining flexible enough for typical pathway and tray installations. A nylon rip-cord beneath the jacket streamlines jacket removal and termination, saving time and reducing the risk of damage to pairs during installation.
One of the primary selling points for this reel is the LSZH jacket. In environments where occupant safety and minimal toxic fumes are priorities — such as hospitals, schools, public transport hubs and high-density enclosures — LSZH cabling helps reduce the concentration of corrosive and toxic gases emitted during combustion. The cable’s declared CPR class of Eca signals compliance with reaction-to-fire requirements in many regions, though project teams should always confirm fire-class requirements against local regulations before specification.
The 305 m easy-pull reel format is designed to reduce handling time and packaging waste. Installers can feed cable smoothly from the box without dragging long lengths across a site, which helps maintain cable integrity and speeds up large runs. The bright purple outer jacket also aids quick identification during complex multi-cable deployments, reducing errors and improving workflow efficiency.
Use Cases and Scenarios Where the Cable Excels
- Commercial Offices:Structured horizontal cabling to desks and wall outlets where Gigabit Ethernet is required and where fire-safety materials are specified.
- Educational Facilities:Classrooms and lecture theatres benefit from LSZH materials for occupant safety; purple cabling can be used to identify dedicated AV or guest networks.
- Healthcare Environments:Hospitals and clinics often require low-toxicity materials in risers and patient areas; this cable addresses that need while providing reliable data links.
- Data Centres & Server Rooms (secondary/backbone uses):While Cat6 is generally used for access layers, this reel is suitable for short runs, consolidation points or AV links inside equipment rooms where LSZH is required.
- AV and HDBaseT Links:Certified for HDBaseT, it is suitable for distributing video, audio and control signals over distances up to 90 m per the HDBaseT channel specification.
- PoE Deployments:Compatible with PoE and PoE+ devices when installed and tested to appropriate standards, making it suitable for IP phones, wireless access points and security cameras.
Comparisons with Similar Products on the Market
When comparing the SFX Cat6 UTP LSZH reel to other Cat6 cables, there are a few areas to consider: fire-rated jacket, conductor construction, packaging format and certification.
- LSZH vs PVC-jacketed Cat6:PVC jackets are common and often cheaper, but PVC emits more smoke and toxic gases when burned. LSZH is preferred in enclosed, public or sensitive spaces. The trade-off can be a slightly higher material cost for LSZH cables like this SFX offering.
- Solid vs Stranded Conductors:Solid conductors (as used here) are ideal for permanent links and punch-down terminations; stranded cables are more flexible for patch leads but are not typically used for permanent horizontal runs.
- Standard Cat6 vs Cat6a:Cat6a offers higher bandwidth and 10 Gbps support over 100 m, but for many networks the Cat6 1 Gbps up to 90 m is sufficient and more cost-effective. If futureproofing to 10G over long distances is a requirement, Cat6a would be the better—but more expensive—choice.
- Packaged Reels:The 305 m easy-pull box is a standard professional format; some competing products ship in looser coils or on drums. The easy-pull box is often preferred for reduced waste and faster pulls on site.
Customer Feedback and Installer Notes
Official customer testimonials for this specific SFX part are not included in the product brief. However, from common installer feedback on similar LSZH Cat6 reel products, installers typically praise:
- Ease of pulling from the 305 m box and reduced tangling compared with loose coils.
- Clear pair identification and reliable termination performance when using standard Cat6 patch panels and jacks.
- Confidence in specifying LSZH for areas where fire-safety requirements are strict, citing reduced smoke concerns.
If you have site-specific experience with this product, gathering and sharing actual testimonials helps future buyers; product pages and reseller listings often invite verified reviews to highlight real-world performance and installation tips.
Conclusion: Why Choose the SFX/C6-UTP-LSZH-PUR-305?
The SFX Cat6 UTP LSZH 305 m reel strikes a practical balance between performance, safety and cost. It meets the needs of most modern networks by delivering Gigabit performance up to 90 m, while the LSZH jacket and HDBaseT certification broaden its applicability to safety-conscious and AV-integrated projects. The purple sheath simplifies identification in multi-cable infrastructures, and the easy-pull reel format delivers tangible savings in installation time and waste reduction.
For projects where occupant safety and low-toxicity materials are required, or where installer efficiency and clear cable identification are priorities, this SFX Cat6 cable is a sensible, workmanlike choice. Always confirm the cable’s CPR/fire-class meets your local building code and use suitable certification tools to test each installed link for continuity, NEXT and attenuation to guarantee expected Gigabit performance.
Note:Pricing and availability should be confirmed with your supplier. The suggested retail price for reference is 159.99 (supplier pricing may vary). For detailed electrical tables and full datasheet specifications, consult the official product datasheet or provide the PDF to extract the exact performance figures for attenuation, NEXT and return loss.
