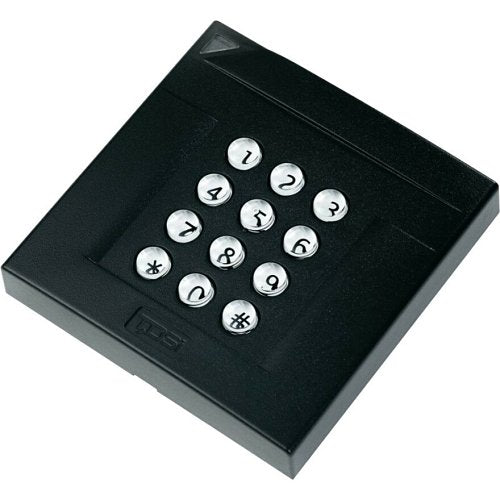

TDSi 5002-0396 proximity reader, Black

TDSi 5002-0396 is a proximity reader.

This page covers TDSi part 5002-0396. Everything below is recorded against that exact part number rather than against the wider range it belongs to.

The figures held against it cover identification method, maximum operating range, operating range among others. Anything not listed we have not stated.

Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.

Key features

• Identification Method: Contactless Card (RFID/Proximity), PIN/Passcode. This is the figure the record carries for this exact part number.
• Maximum Operating Range: 150.00mm. Parts in the same family can differ here, so check the code rather than the family.
• Operating Range: 150mm. It is listed for this part number, not for the range as a whole.
• RoHS compliance: Recorded as compliant with the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. Where your specification names a figure, compare it against this one before ordering.
• WEEE compliance: Recorded as out of scope for the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. Parts in the same family can differ here, so check the code rather than the family.
• Wiegand: Present on this part number. The record states it as a property of this part rather than of the wider range. This is the figure the record carries for this exact part number.
• Colour: Black. Where your specification names a figure, compare it against this one before ordering.
• Depth: 20.00mm. It is listed for this part number, not for the range as a whole.
• Height: 102.00mm. This is the figure the record carries for this exact part number.
• Weight: 190.00g. Parts in the same family can differ here, so check the code rather than the family.
• Width: 102.00mm. It is listed for this part number, not for the range as a whole.
• Mount Type: Junction Box Mount. Where your specification names a figure, compare it against this one before ordering.
• Indoor or outdoor use: Indoor, Outdoor. Parts in the same family can differ here, so check the code rather than the family.
• Weight: 190.00g. This is the figure the record carries for this exact part number.

Use cases

Specify this part where the proximity reader role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.

• Where it goes: Recorded for indoor, outdoor use.
• Mounting: Recorded as junction box mount.

If you are matching this to an existing installation, work from the 5002-0396 part number rather than the description. This family carries 4 closely-related part numbers that differ only by suffix.
