Knightsbridge: TNXTPEM, Adjustable Emergency LED Gear Tray, 230V, 10W-20W, CCT, Daylight Sensor, IP20, Class II
About this product
Knightsbridge's latest innovation is the wattage and colour-adjustable LED gear trays.
It reduces complexity by combining triple wattage and colour adjustments into a single gear tray. Secured to the casing* via four butterfly clips paired with the push-fit terminal block, ensuring a speedy installation.
- Integral natural daylight sensor for exterior use only
- Slave Live terminal enables the powering of additional non-sensor luminaires
- Adjustable colour temperatures: 3000K/ 4000K/ 5700K
- Adjustable wattage: 10W/ 15W/ 20W
- Push-fit terminals with loop-in-loop-out capabilities
- Options available: standard, emergency, self-test emergency, microwave sensor, emergency with a microwave sensor, self-test emergency with a microwave sensor
*Casing is not included and must be purchased separately.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
| Class | II |
|---|---|
| IP Rating | IP20 |
| Construction | Aluminium |
| Primary Voltage | 230V 50Hz |

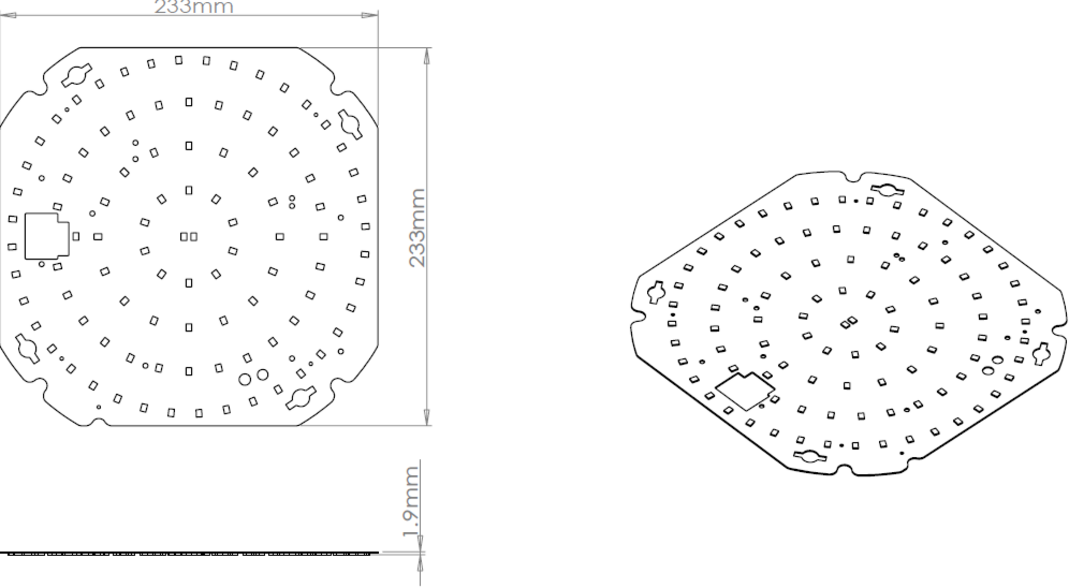

Dimensions
| Height | 233 mm |
|---|---|
| Length | 233 mm |
Lamp
| L70B50 | 40,000 |
|---|---|
| Dimmable | No |
| Beam Angle | 120 |
| Lamp Technology | SMD LED |
| Energy Rating (Class) post 2021 SLR | D |
Driver
| Driver Type | Constant Current |
|---|
Luminaire
| Emergency | Maintained / Non-maintained (not Switched) |
|---|
Photometric
| CCT | 3000/4000/5700 K |
|---|---|
| CRI | >85 |
| Lumens | 1360/1480/1405, 1905/2090/1960, 2345/2630/2415 lm |
| Wattage | 10/15/20 |
| Light Colour | CCT |
| Lumens (Em. mode) | 125 lm |
| Efficacy (Light source) | 151/147/141 lm/W |
TENAX Adjustable Emergency Gear Tray features
Knightsbridge: TNXTPEM, Adjustable Emergency LED Gear Tray, 230V, 10W-20W, CCT, Daylight Sensor, IP20, Class II
