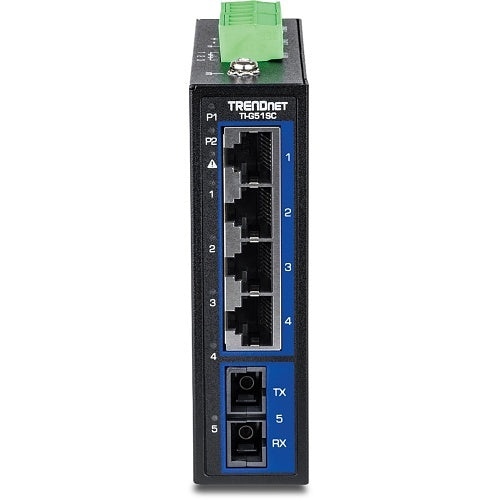

TRENDnet TI-G51SC gigabit din-rail switch, DIN Rail, Wall Mount

£ 85 59
(Incl. VAT)

About this product

TRENDnet TI-G51SC is a gigabit din-rail switch.

TRENDnet's 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port, model TI-G51SC, features a rugged IP30 rated metal enclosure and is designed to work in the harshest networking environments. This industrial switch with a fiber port is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures of industrial environments within -40° to 75°C (-40° to 167°F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime.

This hardened industrial switch features copper gigabit ports for high-speed device connections, and a gigabit multi-mode SC port for long-distance fiber networking applications up to 550m.

Key features

  • 4x Gigabit Ports
  • 1x Gigabit Multimode fiber SC port
  • Hardened IP30 rated metal switch
  • Extreme -40° to 75°C (-40° to 167°F) operating temperature range
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • 10 Gbps Switching capacity
  • Includes DIN-Rail and wall mounts

If you are matching this to an existing installation, work from the TI-G51SC part number rather than the description.

£ 85 59
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£85.59 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
TRENDnet
Manufacturer Part Number
TI-G51SC
Product Type
Switch
Technical information
Media Type Supported
Optical Fiber, Twisted Pair
Power Consumption
3.6000W
I/o expansions
Number of Total Expansion Slots
1
Interfaces/ports
Modular
Yes
Network (RJ-45)
Yes
Receptacles
1 x SC Multi-Mode Fiber Port, 2 x 3-pin Removable Terminal Block, 4 x Gigabit Port
Total Number of Network Ports
5
Management & protocols
Manageable
No
Media & performance
Network Technology
1000Base-SX, 1000Base-T
Network & communication
Ethernet Technology
1 Gbps (Gigabit Ethernet)
Layer Supported
2
Networking Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Physical characteristics
Height
28.00mm
Material
Metal
Width
90.00mm
Power description
Input Voltage
9-60V DC
Plug/Connector Type
Terminal Block
Power over Ethernet (PoE)
No
Power Source
DC Power
Product information
Length
99.00mm
Mount Type
DIN Rail Mount, Wall Mount
Miscellaneous
Environmental certification
CE, FCC, LVD
Features
IP30, Surge Protection
Package Contents
5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port Quick Installation Guide Removable terminal block DIN-Rail / wall mount kit
Attributes
Input Voltage
9-60V DC
Package Contents
5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port Quick Installation Guide Removable terminal block DIN-Rail / wall mount kit
Power Source
DC Power

Specifications

Brand Name TRENDnet
Manufacturer Part Number TI-G51SC
Product Type Switch

Technical information

Media Type Supported Optical Fiber, Twisted Pair
Power Consumption 3.6000W

I/o expansions

Number of Total Expansion Slots 1

Interfaces/ports

Modular Yes
Network (RJ-45) Yes
Receptacles 1 x SC Multi-Mode Fiber Port, 2 x 3-pin Removable Terminal Block, 4 x Gigabit Port
Total Number of Network Ports 5

Management & protocols

Manageable No

Media & performance

Network Technology 1000Base-SX, 1000Base-T

Network & communication

Ethernet Technology 1 Gbps (Gigabit Ethernet)
Layer Supported 2
Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Physical characteristics

Height 28.00mm
Material Metal
Width 90.00mm

Power description

Input Voltage 9-60V DC
Plug/Connector Type Terminal Block
Power over Ethernet (PoE) No
Power Source DC Power

Product information

Length 99.00mm
Mount Type DIN Rail Mount, Wall Mount

Miscellaneous

Environmental certification CE, FCC, LVD
Features IP30, Surge Protection
Package Contents 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port Quick Installation Guide Removable terminal block DIN-Rail / wall mount kit

Attributes

Input Voltage 9-60V DC
Package Contents 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port Quick Installation Guide Removable terminal block DIN-Rail / wall mount kit
Power Source DC Power

TRENDnet TI-G51SC gigabit din-rail switch

TRENDnet TI-G51SC gigabit din-rail switch, DIN Rail, Wall Mount

Who this is for

For the installer — this is the gigabit din-rail switch supplied under TRENDnet part number TI-G51SC. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a gigabit din-rail switch made by TRENDnet. The part number TI-G51SC is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this gigabit din-rail switch is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact gigabit din-rail switch I have been quoted? Check the manufacturer part number TI-G51SC against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against TI-G51SC answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
