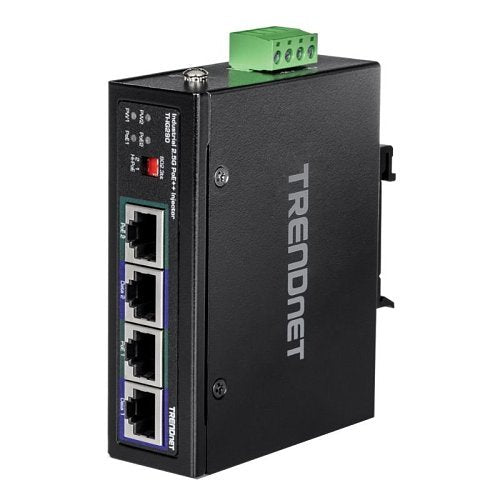

TRENDnet TIIG290 PoE++ injector, DIN Rail, Wall Mount

Free Delivery
£ 144 96
(Incl. VAT)

About this product

TRENDnet TIIG290 is a PoE++ injector.

TRENDnet's 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100m to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W.

The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 167° F) for harsh industrial environments.

Key features

  • 2 x 2.5G PoE++ ports (Data + PoE out)
  • 2 x 2.5G ports (Data")
  • 180W PoE power budget
  • Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
  • Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
  • Network a PoE device located up to 100m (328 ft.) away
  • Fanless design eliminates operating noise and lowers energy consumption
  • Extreme operating temperature range -40 to 75 °C (-40 to 167 °F)
  • Redundant power inputs with overload current protection
  • Includes DIN-Rail mount and wall mount

If you are matching this to an existing installation, work from the TIIG290 part number rather than the description.

£ 144 96
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£144.96 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
TRENDnet
Manufacturer Part Number
TIIG290
Product Type
PoE++ Injector
Certifications
Certifications & Standards
CE FCC IEC EN60950-1 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Environmental conditions
Operating Relative Humidity (H-H)
95%
Operating Temperature (T-T)
-40-75°C
Interfaces/ports
Input Ports
2 x 2.5 Gigabit Ethernet
Output Ports
2 x 2.5 Gigabit PoE++
Physical characteristics
Colour
Silver
Form Factor
DIN Rail Mount, Wall Mount
Height
30.00mm
Material
Metal
Width
81.00mm
Power description
Input Voltage
56V DC
Maximum Output Power
180.00W
Maximum Output Voltage
56V
PoE (RJ-45) Port
Yes
PoE Budget
180W
Power over Ethernet (PoE)
Yes
Product information
Length
103.00mm
Mount Type
DIN Rail Mount, Wall Mount
Protection Type
Overload Protection, Surge Protection
Miscellaneous
Package Contents
95W 2-Port Industrial 2.5G PoE++ Injector Quick Installation Guide Removable Terminal Block DIN-rail and Wall Mount Kit IP30 Rated Metal Enclosure
Attributes
Input Voltage
56V DC
Maximum Output Power
180.00W
Package Contents
95W 2-Port Industrial 2.5G PoE++ Injector Quick Installation Guide Removable Terminal Block DIN-rail and Wall Mount Kit IP30 Rated Metal Enclosure
Operating Relative Humidity (H-H)
95%

Specifications

Brand Name TRENDnet
Manufacturer Part Number TIIG290
Product Type PoE++ Injector

Certifications

Certifications & Standards CE FCC IEC EN60950-1 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)

Environmental conditions

Operating Relative Humidity (H-H) 95%
Operating Temperature (T-T) -40-75°C

Interfaces/ports

Input Ports 2 x 2.5 Gigabit Ethernet
Output Ports 2 x 2.5 Gigabit PoE++

Physical characteristics

Colour Silver
Form Factor DIN Rail Mount, Wall Mount
Height 30.00mm
Material Metal
Width 81.00mm

Power description

Input Voltage 56V DC
Maximum Output Power 180.00W
Maximum Output Voltage 56V
PoE (RJ-45) Port Yes
PoE Budget 180W
Power over Ethernet (PoE) Yes

Product information

Length 103.00mm
Mount Type DIN Rail Mount, Wall Mount
Protection Type Overload Protection, Surge Protection

Miscellaneous

Package Contents 95W 2-Port Industrial 2.5G PoE++ Injector Quick Installation Guide Removable Terminal Block DIN-rail and Wall Mount Kit IP30 Rated Metal Enclosure

Attributes

Input Voltage 56V DC
Maximum Output Power 180.00W
Package Contents 95W 2-Port Industrial 2.5G PoE++ Injector Quick Installation Guide Removable Terminal Block DIN-rail and Wall Mount Kit IP30 Rated Metal Enclosure
Operating Relative Humidity (H-H) 95%

TRENDnet TIIG290 PoE++ injector

TRENDnet TIIG290 PoE++ injector, DIN Rail, Wall Mount

Who this is for

For the installer — this is the PoE++ injector supplied under TRENDnet part number TIIG290. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a PoE++ injector made by TRENDnet. The part number TIIG290 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this PoE++ injector is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact PoE++ injector I have been quoted? Check the manufacturer part number TIIG290 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against TIIG290 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

TRENDnet TIIG290 PoE++ injector
TRENDnet

TRENDnet TIIG290 PoE++ injector, DIN Rail, Wall Mount

£144.96

TRENDnet TIIG290 is a PoE++ injector.

TRENDnet's 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100m to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W.

The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 167° F) for harsh industrial environments.

Key features

If you are matching this to an existing installation, work from the TIIG290 part number rather than the description.
