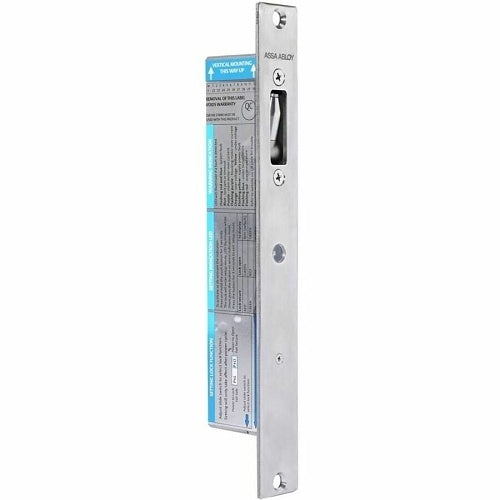

Trimec 208100-004 retrofit strike plate, Stainless Steel
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Trimec 208100-004 is a retrofit strike plate.
Retrofit Strike Plate with Magnet, used when replacing an ES8000 V-Lock. Designed and assembled in Australia, with patents pending in various countries, the ES8100 includes many improvements over its Lockwood/Trimec predecessor, the ES8000, such as a higher preload rating of 100kg, Door Position Monitoring, integrated LED lock status and diagnostics visual indication, increased door misalignment correction from 7mm to 12mm, an IP53 rating for external door applications, and simple, one-step, PTO/PTL onsite configuration.
Key features
- Unlocks under a Pre-Load of up to 100 kg in 3-wire mode, 15kg in 2-wire mode
- Locks under a Pre-Load of 20kg (12W) and 35kg (24W)
- IP53 Rated for external door applications
- Door Position and Lock Status monitoring
- On-Board visual Lock Status indication and diagnostics LED
- Easy, one-step, Fail Safe (PTL) and Fail Secure (PTO) field selection
- May be mounted vertically or horizontally
- Durability tested to 500,000 cycles (120N unlocking, 50N locking)
If you are matching this to an existing installation, work from the 208100-004 part number rather than the description.
-
Download
- 208100-004 — User Manual
Specifications
General information
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Trimec |
|---|---|
| Manufacturer Part Number | 208100-004 |
| Product Type | Strike Plate |
General information
| Application/Usage | Door, Lock |
|---|
Physical characteristics
| Material | Stainless Steel |
|---|
Miscellaneous
| Compatibility | ASSA Abloy ES8100 Lock |
|---|
Attributes
| Compatibility | ASSA Abloy ES8100 Lock |
|---|
