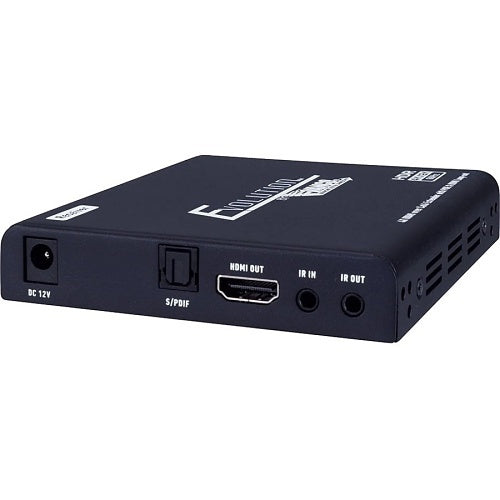

Vanco EVEX4K70 HDMI extender, 4096 x 2160
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Vanco EVEX4K70 is an HDMI extender.
Discover the power of seamless connectivity with the Vanco EVEX4K70 4K HDMI Extender. This cutting-edge device allows you to transmit HDMI audio/video signals effortlessly using a single Cat6/6A/7 cable. Extend your 4K at 60Hz, 4:4:4, and HDR10 content up to 230ft/70m, and 1080p up to 330ft/100m.
Featuring bi-directional Power over Ethernet (PoE), both the transmitter and receiver can operate from a single power source, simplifying your setup. It supports a variety of audio formats including Dolby TrueHD and Dolby Digital, and is HDCP 1.4/2.2 compliant for enhanced security. The HDMI loop-out enables local monitoring, while the digital optical audio breakout allows for superior audio extraction.
Control your source or display with bi-directional IR support. Its slim and compact design ensures it fits neatly in any setup. Enhance your media experience—make the Vanco EVEX4K70 yours today!
Key features
- Allows HDMI audio/video signals to be transmitted using a single Cat6/6A/7 Cable
- Extends 4Kat 60Hz, 4:4:4, and HDR10 up to 230ft/70m and 1080p up to 330ft/100m
- Features bi-directional Power over Ethernet (PoE) technology which transmits power over Cat6, allowing the transmitter and receiver to be powered off of a single power supply
- Supports multiple audio formats such as (Dolby TrueHD 7.1CH/Dolby Digital 5.1CH)
- HDCP 1.4/2.2 compliant
- Dynamic EDID for compatibility and plug and play operation
- HDMI loop-out for local monitoring or use with other HDMI distribution products
- Digital optical audio breakout for audio extraction
- Supports bi-directional IR (20~60KHz) for source or display control
- Slim and compact design
If you are matching this to an existing installation, work from the EVEX4K70 part number rather than the description.
-
Download
- EVEX4K70 — User Manual
Specifications
Technical information
Display & graphics
Interfaces/ports
Power description
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | EVEX4K70 |
| Product Type | Video Extender Transmitter/Receiver |
Technical information
| Cable Type | Category 7 |
|---|---|
| Connectivity Technology | Wired |
| Maximum Operating Distance | 100m |
| Media Type Supported | Twisted Pair |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 2 |
Display & graphics
| Maximum video resolution | 4096 x 2160 |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| Number of Network (RJ-45) Ports | 2 |
Power description
| Power over Ethernet (PoE) | Yes |
|---|
Video
| Graphics Mode | 4K UHD |
|---|
Miscellaneous
| Package Contents | EVEX4K70 (TX & RX) (1) IR Receiver (1) IR Emitter (1) Set of Mounting Hardware (1) DC 12V, 1A Power Suppy (1) Product Manual |
|---|
Attributes
| Package Contents | EVEX4K70 (TX & RX) (1) IR Receiver (1) IR Emitter (1) Set of Mounting Hardware (1) DC 12V, 1A Power Suppy (1) Product Manual |
|---|
